Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630LW
Model 205
Model 213
Model 253
Model 293

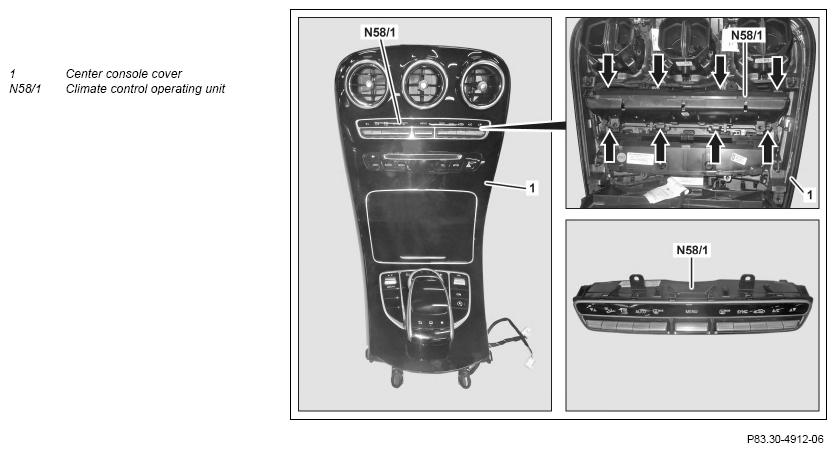

Shown on model 205 with transmission 722
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove center console cover (1). | Model 205 with transmission 722, 724, 725 Model 213 with transmission 725 Model 253 with transmission 724, 725 Model 293 |
AR68.20-P-2350LW |
| 1.2 | Remove center instrument panel cover. | Model 205, 253 with transmission 716 Model 213 with transmission 716 |
|
| Model 205, 253 with transmission 716 | AR68.20-P-2313LW | ||
| Model 213 with transmission 716 | AR68.10-P-3430LWE | ||
| 2 | Unclip air conditioning control panel (N58/1) (arrows) and remove. | Fig 1 | |
| 3 | Install in the reverse order. |
