Remove/Install Radar Sensor In Rear Bumper - AR54.21-P-0704LWM
Model 205
as of model year 2019
with code 233 (DISTRONIC PLUS)
Model 205
as of model year 2019
with code 234 (Blind Spot Monitoring)
Model 253 (except 253.992/993)
as of model year 2020
with code 233 (DISTRONIC PLUS)
Model 253 (except 253.992/993)
as of model year 2020
with code 234 (Blind Spot Monitoring)

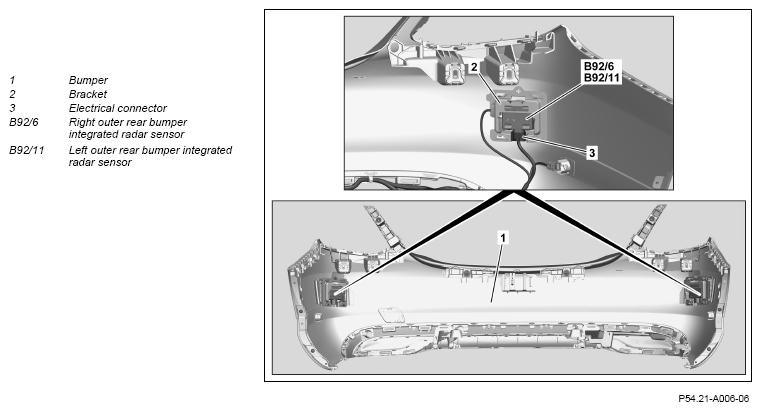

Shown on model 205 with code 233 (DISTRONIC PLUS)

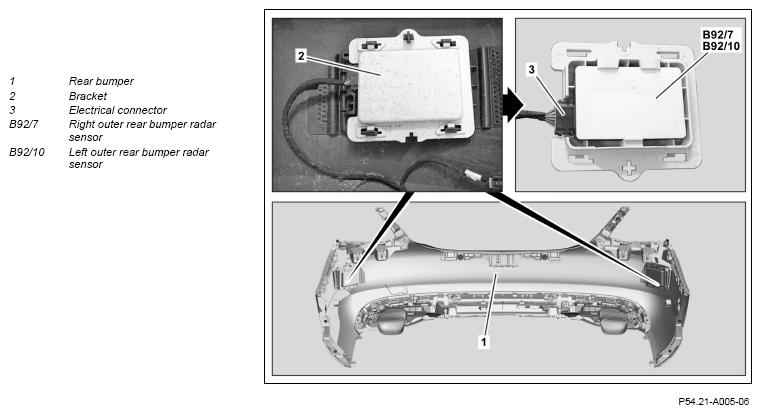

Shown on model 205 with code 234 (Blind Spot Assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Remove/install | |||
| 1 | Commission rear bumper radar sensor (B92/6, B92/7, B92/10, B92/11). | When replacing rear bumper radar sensor (B92/6, B92/7, B92/10, B92/11). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove bumper (1). | Model 253 (except 253.992/993) as of model year 2020 with code 233 (DISTRONIC PLUS) |
AR88.20-P-2200LWG |
| Model 253 (except 253.992/993) as of model year 2020 with code 234 (Blind Spot Monitoring) |
|||
| Model 205.2 as of model year 2019 with code 233 (DISTRONIC PLUS) |
AR88.20-P-2200LWS | ||
| Model 205.2 as of model year 2019 with code 234 (Blind Spot Monitoring) |
|||
| Model 205.0/1/3/4 as of model year 2019 with code 233 (DISTRONIC PLUS) |
AR88.20-P-2200LW | ||
| Model 205.0/1/3/4 as of model year 2019 with code 234 (Blind Spot Monitoring) |
|||
| 3 | Release and remove holder (2) with rear bumper radar sensor (B92/6, B92/7, B92/10, B92/11). | ||
| 4 | Disconnect electrical connector (3) from rear bumper radar sensor (B92/6, B92/7, B92/10, B92/11). | ||
| 5 | Unclip rear bumper radar sensor (B92/6, B92/7, B92/10, B92/11) from cover and remove. | ||
| 6 | Install in the reverse order |
