Remove/Install Rear Bumper - AR88.20-P-2200LWG

Model 253, Model 293

MODIFICATION NOTES

18.04.2018 Remove both rear light units, added. Operation step 1

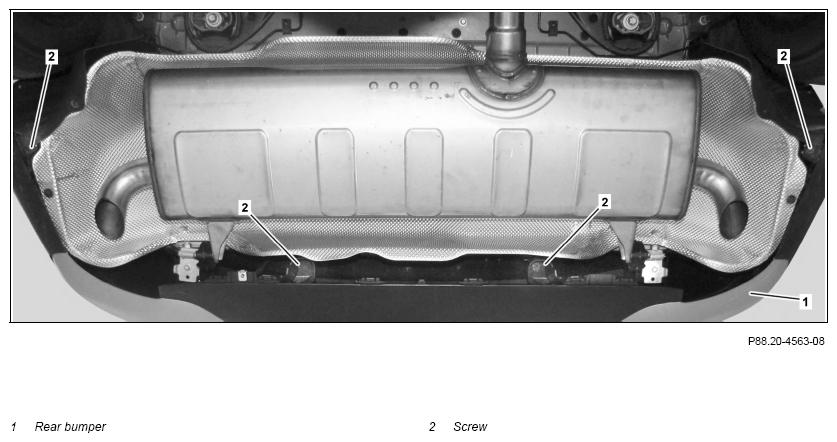

Shown on model 253.9 with engine 274

Fig 1: Rear Bumper Components Location - Shown On Model 253 With Engine 274
G12939788Courtesy of MERCEDES-BENZ USA

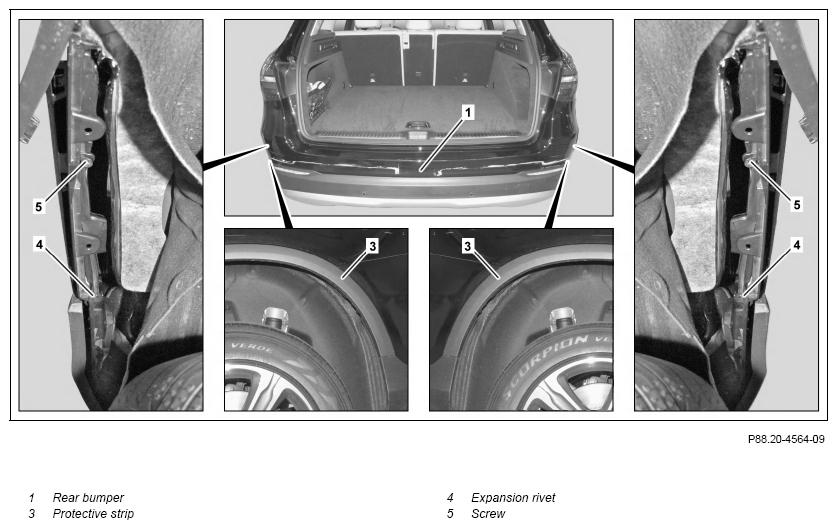

Shown on model 253.9

G12939789Courtesy of MERCEDES-BENZ USA

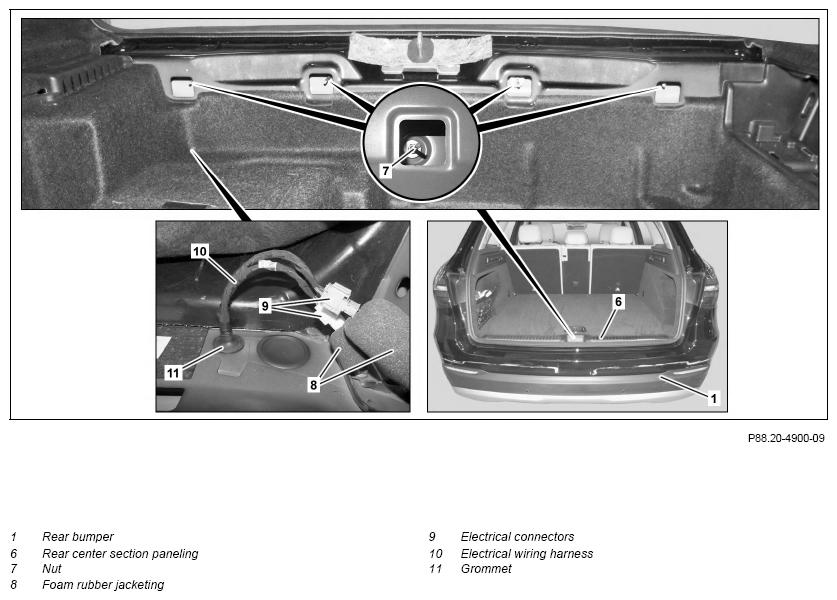

Shown on model 253.9 with code 235 (Active Parking Assist with PARKTRONIC), with code 237 (Active Blind Spot Assist), with code 238 (Active Lane Keeping Assist), with code 253 (Rear collision warning and protection system) and with code P17 (KEYLESS-GO Package)

G12939790Courtesy of MERCEDES-BENZ USA

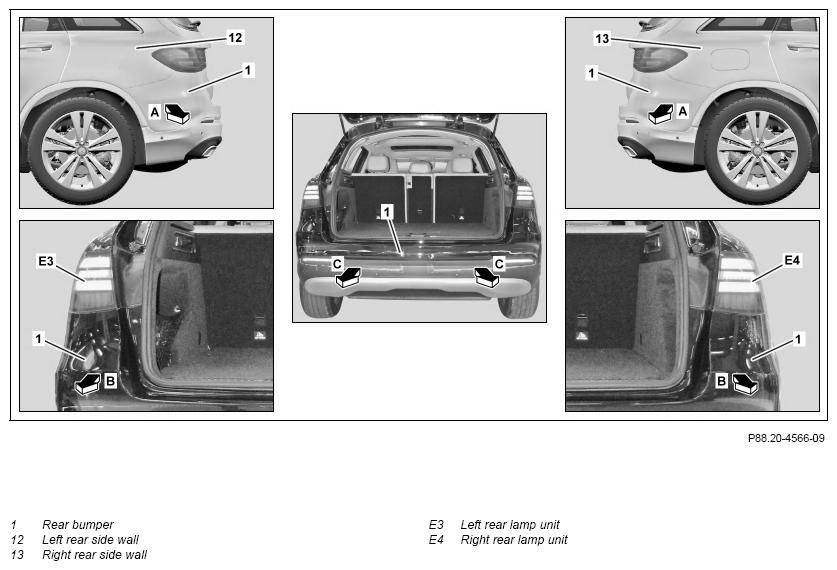

Shown on model 253.9

G12939791Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on HANDS-FREE ACCESS   AH80.61-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove both rear light units (E3, E4). Model 253.9
Model 293
AR82.10-P-4731LWS
    Model 253.3 AR82.10-P-4731LWX
2 Raise vehicle.   AR00.60-P-1006A
3 Remove screws at cover of AdBlue® tank in the area of rear bumper (1). Model 253 with engine 642, 651, 654, 656
4 Unscrew bolts (2). IMPORTANT , Model 293 5 screws (2) installed.
5 Unclip and remove protective strips (3). Model 253
NOTES
Carefully unclip protective strips (3) and remove.
Otherwise they may be damaged.

6 Remove expansion rivets at left fender liner and at right fender liner in the area of rear bumper (1).
7 Press left fender liner and right fender liner to side and remove expansion rivets (4) located underneath. SPECIAL TOOL Clip remover Figure
8 Press left fender liner and right fender liner to side and remove screws (5) located underneath. SPECIAL TOOL Mounting wedge Figure
9 Remove rear-end center-section trim (6).   AR68.30-P-4785LWS
10 Unscrew nuts (7).
11 Fold back foam jackets (8) and disconnect electrical connectors (9). Model 253.3
Model 253.9, Model 293
with code 234 (Blind Spot Monitoring)
Model 253.9, Model 293
with code 235 (Active Parking Assist with PARKTRONIC)
Model 253.9, Model 293
with code 237 (Active Blind Spot Assist)
Model 253.9, Model 293
with code 238 (Active lane keeping Assist)
Model 253.9, Model 293
with code 253 (Rear impact warning and protection system)
Model 253.9, Model 293
with code P17 (KEYLESS-GO package)
INSTALLATION NOTES
Fully fold back foam jackets (8) over electrical connectors (9).
Otherwise noise may occur.
IMPORTANT The number of electrical connectors (9) may vary depending on the equipment.

12 Guide electrical wiring harness (10) with grommet (11) out of body. Model 253.3
Model 253.9, Model 293
with code 234 (Blind Spot Monitoring)
Model 253.9, Model 293
with code 235 (Active Parking Assist with PARKTRONIC)
Model 253.9, Model 293
with code 237 (Active Blind Spot Assist)
Model 253.9, Model 293
with code 238 (Active lane keeping Assist)
Model 253.9, Model 293
with code 253 (Rear impact warning and protection system)
Model 253.9, Model 293
with code P17 (KEYLESS-GO package)
INSTALLATION IMPORTANT Ensure grommet (11) is seated correctly.

13 Mask off left rear side wall (12) and right rear side wall (13).
14 Release rear bumper (1) at left rear side wall (12) and at right rear side wall (13) (arrows A).
15 Release rear bumper (1) in area of both removed rear light units (E3, E4) (arrows B). IMPORTANT Helper required.
16.1 Disengage rear bumper (1) (arrows C) and remove. Model 253 (except 253.354/954), Model 293
IMPORTANT Helper required.

16.2 Release rear bumper (1) (arrows C) until electrical connector of actuator motor of socket flap can be accessed. Model 253.354/954
17 Disconnect electrical connector of actuator motor of socket flap. Model 253.354/954
18 Remove rear bumper (1). Model 253.354/954
IMPORTANT Helper required.

19 Install in the reverse order.
Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
G11129047Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Clip Remover (452 589 01 63 00)
G11129172Courtesy of MERCEDES-BENZ USA
