Remove/Install Parking System Control Unit - AR54.65-P-0018LXM
Model 253
as of model year 2020
with code 235 (Active Parking Assist with PARKTRONIC)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission parking system control unit (N62). | When replacing parking system control unit (N62). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove left load compartment trim at side. | Model 253 (except 253.992/993) as of model year 2020 with code 235 (Active Parking Assist with PARKTRONIC) |
AR68.30-P-1180LWG |

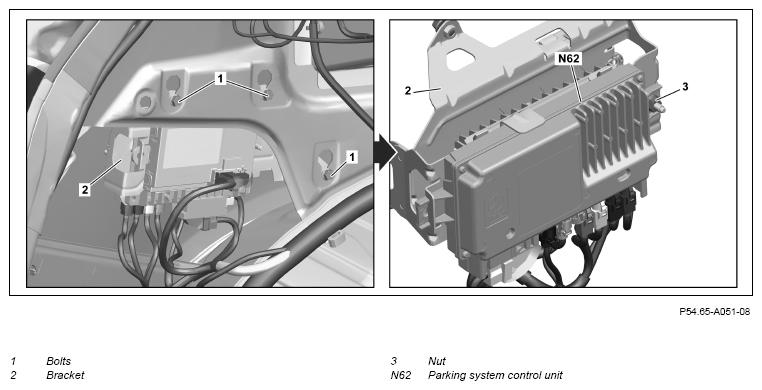

| 4 | Release bolt (1) and remove holder (2) with parking system control unit (N62) and place into vehicle. | ||
| 5 | Disconnect electrical connectors from parking system control unit (N62). | ||
| 6 | Remove nut (3) and remove parking system control unit (N62) from holder (2). | ||
| 7 | Install in the reverse order. |
