Remove/Install Mercedes-Benz Intelligent Drive Control Unit - AR54.21-P-0044LXM
Model 253 (except 253.992/993)
as of model year 2020
with code 233 (DISTRONIC PLUS)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission Mercedes-Benz Intelligent Drive control unit (N62/4). | When replacing Mercedes-Benz Intelligent Drive control unit (N62/4). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove left load compartment trim at side. | Model 253 (except 253.992/993) as of model year 2020 with code 233 (DISTRONIC PLUS) |
AR68.30-P-1180LWG |

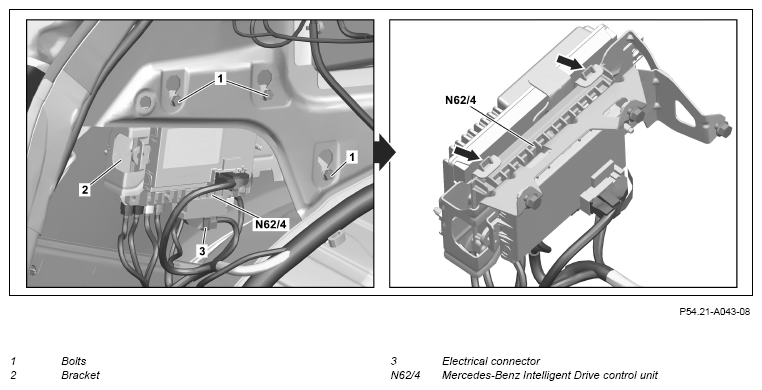

| 4 | Release bolts (1), remove holder (2) with Mercedes-Benz Intelligent Drive control unit (N62/4) and place into vehicle. | ||
| 5 | Disconnect electrical connector (3). | ||
| 6 | Release Mercedes-Benz Intelligent Drive control unit (N62/4) at catches (arrows) and remove from holder (2). | ||
| 7 | Install in the reverse order. |
