Remove/Install Instrument Cluster - AR54.30-P-6015LWM
Model 205
with code 464 (Full display digital instrument cluster)
Model 253 (except 253.992/993)
as of model year 2020
with code 464 (Full display digital instrument cluster)
Shown on model 205
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform instrument cluster (A1) commissioning | When replacing the instrument cluster (A1). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove cover on instrument cluster (A1). | AR68.10-P-0009LW | |

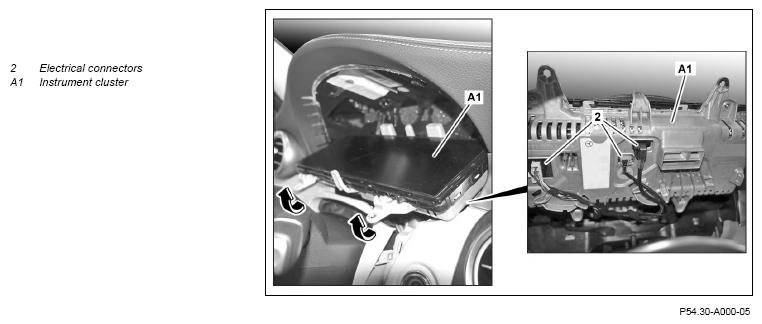

| 4 | Remove instrument cluster (A1) on the underside (arrows) until the electrical connectors (2) are accessible. | ||
| 5 | Disconnect electrical connectors (2). | ||
| 6 | Remove instrument cluster (A1). | ||
| 7 | Install in the reverse order |
