Remove/Install Cover On Instrument Cluster - AR68.10-P-0009LW
Model 205
with code 464 (Full display digital instrument cluster)
Model 253 (except 253.992/993)
as of model year 2020
with code 464 (Full display digital instrument cluster)
| Remove/install | |||
| 1 | Position steering wheel towards rear and bottom. | ||

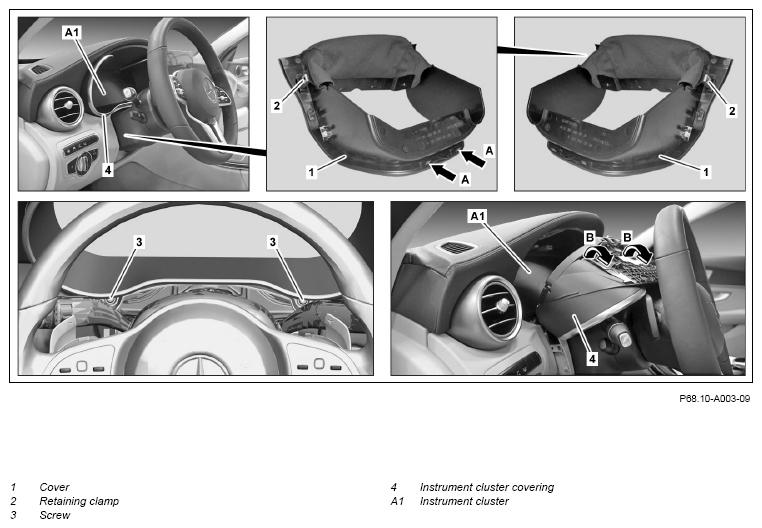

| 2 | Unclip cover (1) at bottom (arrows A) and detach at retaining clamps (2). | Fig 1 | |
| 3 | Remove screw/bolts (3). | ||
| 4 | Detach instrument cluster cover (4) in upper area (arrows B) by pulling out of retaining clips and remove. | ||
| 5 | Install in the reverse order. |
