Remove/Install Rear Floor Covering - AR68.20-P-4800LW

Model 205

Model 253

Model 293

Shown on model 205.0 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

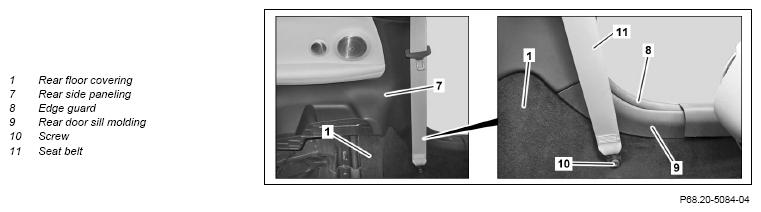

Model 205.3/4, shown on model 205.4 on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door sills.	Model 205.0/1/2, 253, 293	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
2	Release left and right edge guard (8) and remove left and right rear door sill (9).	Model 205.3/4
3	Remove screw (10) and hang seat belt (11) to the side.	Model 205.3/4
		Bolt, rear belt end fitting	*BA91.40-P-1005-01U
4	Remove both front seats.	Model 205.0/1/2/3, 253, 293	AR91.10-P-1000LW
		Model 205.4	AR91.10-P-1000LWR
5.1	Remove center console.	Model 205 Model 205 with transmission 722, 724, 725	AR68.20-P-2000LW
		Model 205.0/2/3/4 with transmission 716	AR68.20-P-2000LWA
5.2	Unscrew rear nuts of the center console, lift center console, and guide out rear passenger compartment floor covering (1).	Model 253 Model 293 Model 253 with transmission 724, 725 Model 293	AR68.20-P-2000LWG
		Model 253 with transmission 716	AR68.20-P-2000LWA
6	Remove seat cushion in rear passenger compartment.	Model 205 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 253 Model 293	AR91.12-P-1020LW
		Model 205.0/2 with code 248 (Rear seat with integrated child seat) Model 205.0/2 with code P10 (Taxi package Germany)	AR91.12-P-1020LWA

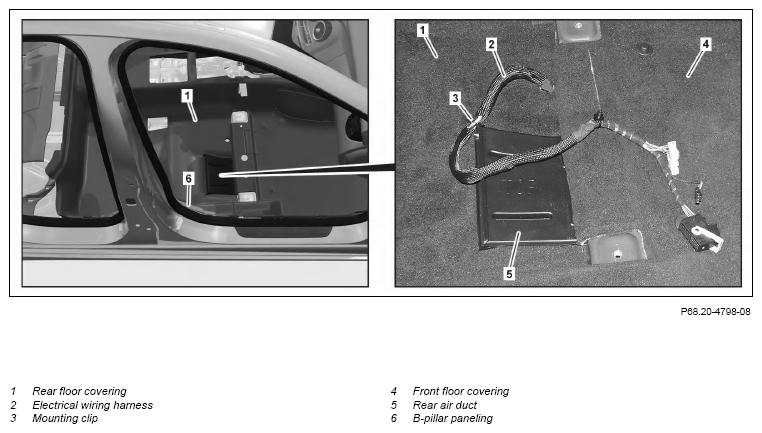

7	Guide out rear passenger compartment floor covering (1) under the left and right B-pillar trim (6) or rear passenger compartment side trim (7).	Long wedge	Fig 1
8	Unclip left and right electrical wiring harness (2 from retaining clip (3).	Clip remover	Fig 2
9	Guide left and right electrical wiring harness (2) through the rear passenger compartment floor covering (1) and remove rear passenger compartment floor covering (1).	: Position rear floor covering (1) below left and right rear air duct (5) and below left and right front floor covering (4).
10	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
