Remove/Install Center Console - AR68.20-P-2000LWG

Model 253 with transmission 724, 725

Model 293

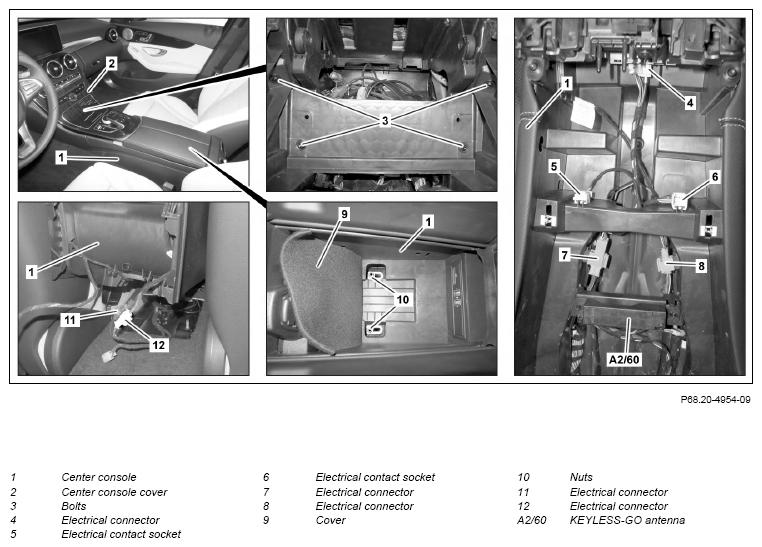

Shown on model 253 with code 386 (Convenience Telephony) and with code 889 (KEYLESS-GO)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console cover (2).		AR68.20-P-2350LW
2	Disconnect electrical connection (4).	The number can vary according to the equipment.
3	Unclip electrical contact sockets (5, 6) at center console (1).	The number can vary according to the equipment.
4	Disconnect electrical connectors (7, 8).	The number can vary according to the equipment.
5	Remove KEYLESS-GO antenna (A2/60) at center console (1).	Model 253 with transmission 724, 725 with code 889 (KEYLESS-GO) Model 253 with transmission 724, 725 with code 893 (KEYLESS-GO) Model 293	AR80.61-P-0041LWG
6	Remove screw/bolts (3).
7	Lift cover (9) in armrest stowage compartment and place to one side.
8	Unscrew nuts (10).
9	Lift center console (1) at rear and disconnect electrical connectors (11, 12).	Model 253 with transmission 724, 725 with code 386 (Comfort telephony)
10	Move out center console (1) toward rear from instrument panel.
11	Install in the reverse order.
