Remove/Install Paneling On Rear Center Section - AR68.30-P-4785LWS

Model 205.2

Model 253

Model 293

Shown on model 205.2 (except 205.213/247/253/293)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install

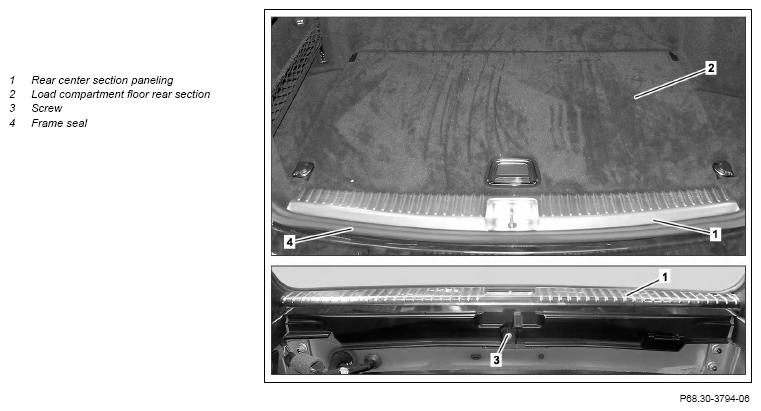

1.1	Remove load compartment floor rear section (2).	Model 205.2 (except 205.247) Model 253.9 (except 253.954) Model 293
1.2	Fold over load compartment floor rear section (2).	Model 205.247 Model 253.3/954
2.1	Remove load compartment well trim.	Model 205.247
2.2	Remove rear retaining clips of the load compartment well trim.	Model 205.213/253
2.3	Remove screw (3).	Model 205.2 (except 205.213/247/253) Model 253 Model 293
3	Unclip rear-end center section trim (1) and remove.	Model 205.213/253 Carefully press load compartment well trim to the side. Otherwise it may be damaged. Model 205.213/253 Installation:  The load compartment well trim must lie on the right and left side over the rear-end center section trim (1). : Ensure sealing frame (4) is correctly seated. Long wedge	Fig 1
4	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)
