Remove/Install Center Console Keyless-Go Antenna - AR80.61-P-0041LWG

Model 213, 238

Model 253

with code 889 (KEYLESS-GO)

Model 253

with code 893 (KEYLESS-Start)

Model 293

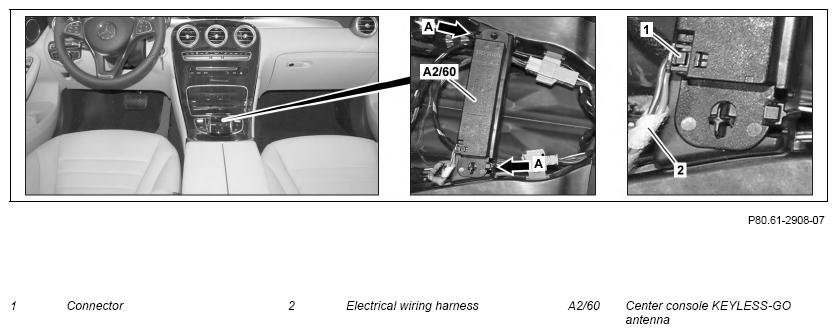

Fig 1: Keyless-Go Antenna Components Location (In Center Console) - W/ Code 889 & 893 (KEYLESS-GO/KEYLESS-Start)

Courtesy of MERCEDES-BENZ USA

Shown on model 253 with transmission 725

Courtesy of MERCEDES-BENZ USA

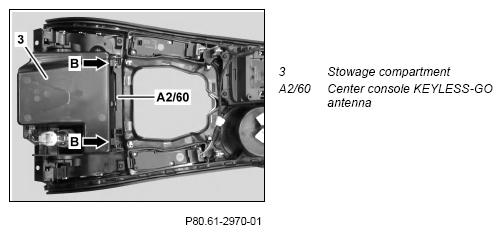

Shown on model 213 with transmission 716

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove cover on center console.
		Model 238 with transmission 716	AR68.20-P-2350LWP
		Model 213 with transmission 716 Model 253 with transmission 716 with code 889 (KEYLESS-GO) Model 253 with transmission 716 with code 893 (KEYLESS-Start)	AR68.20-P-2350LWA
		Model 238 with transmission 725	AR68.20-P-2350LWO
		Model 213 with transmission 725 Model 253 with transmission 724, 725 with code 889 (KEYLESS-GO) Model 253 with transmission 724, 725 with code 893 (KEYLESS-Start) Model 293	AR68.20-P-2350LW
2	Disconnect connector (1).
3.1	Unclip center console KEYLESS-GO antenna (A2/60) at mounts (arrows A) and remove.	Model 253 with code 889 (KEYLESS-GO) Model 253 with code 893 (KEYLESS-Start) Model 293 Ensure that center console KEYLESS-GO antenna (A2/60) is seated correctly in mounts (arrows A). Position electrical wiring harness (2) in groove in center console housing.

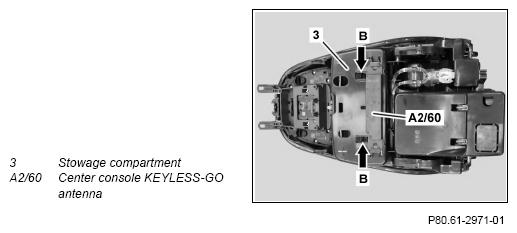

3.2	Unclip center console KEYLESS-GO antenna (A2/60) at mounts (arrows B) and remove.	Model 213, 238 Ensure that center console KEYLESS-GO antenna (A2/60) is seated correctly in mounts (arrows B).
4	Install in the reverse order
