Remove/Install Coolant Expansion Reservoir - AR20.30-P-4949MSA
Engine 256 in model 213, 238, 257, 290
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||

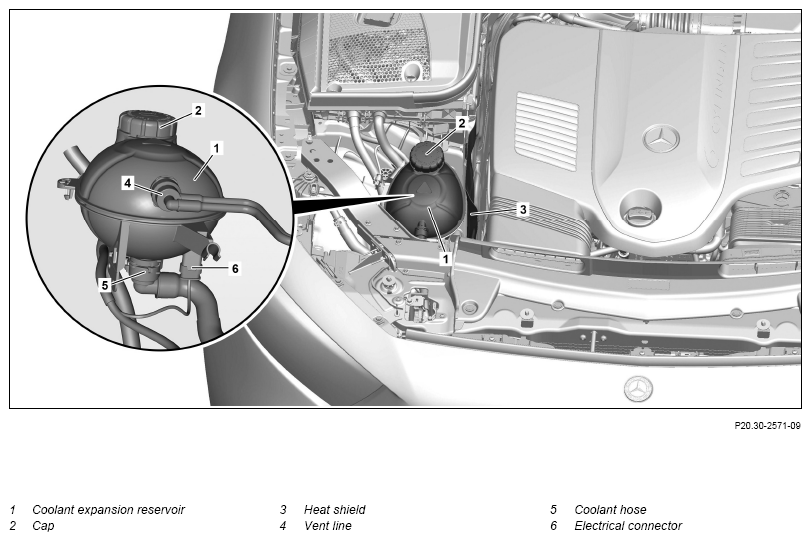

| 1 | Remove heat shield (3) | ||
| 2 | Remove the cap (2) | ||
| 3 | Suction off coolant from coolant expansion reservoir (1) and collect coolant in suitable container | Fig 2 | |
| 4 | Remove the vent line (4) from the coolant expansion reservoir (1) and seal openings with suitable stop plugs | AR20.20-P-7441-01RQ | |
| Fig 4 | |||
| 5 | Unclip the coolant expansion reservoir (1) | ||
| 6 | Remove the coolant hose (5) from the coolant expansion reservoir (1) and seal openings using suitable protective covers | AR20.20-P-7441-01RQ | |
| Fig 3 | |||
| 7 | Release and disconnect electrical connection (6) | ||
| 8 | Remove the coolant expansion reservoir (1) | ||
| 9 | Check the rubber guides of the coolant expansion reservoir (1) for damage | In case of a complaint ↓ Replace rubber guides. |
|
| 10 | Install in the reverse order | ||
| 11 | Check engine cooling system for leaktightness | AR20.00-P-1010MSA |
