Overview Of System Components, Telematics - GF82.85-P-9999FR
Model 257, 290
up to model year 2021
Component parts except telematics antenna system and except speaker system, shown on model 257.3
Model 257.361, 290
up to model year 2021
except code 810 (Premium sound system)
except code 811 (High-End sound system)
Not shown here: The Midline sound system amplifier control unit (N40/2) is installed instead of the sound system amplifier control unit.
Component parts except telematics antenna system and except speaker system, shown on model 290.6

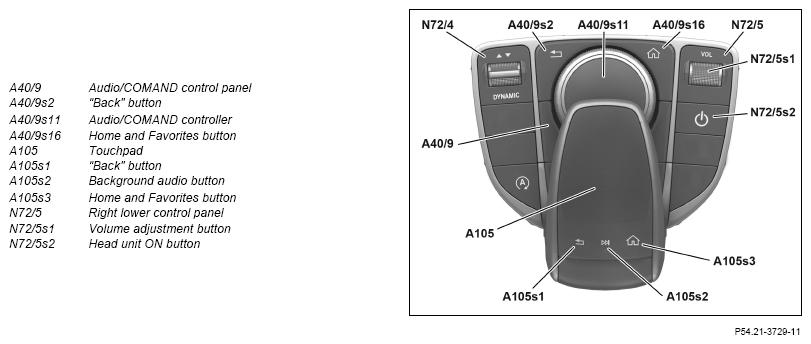

Detailed view of Audio/COMAND control panel, touchpad and right lower control panel, shown with code 448 (Touchpad)

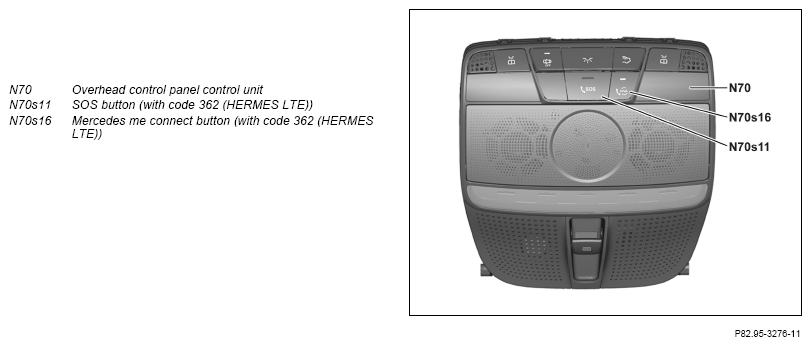

Detailed view of overhead control panel control unit, shown on model 257.3 with code 362 (HERMES LTE)

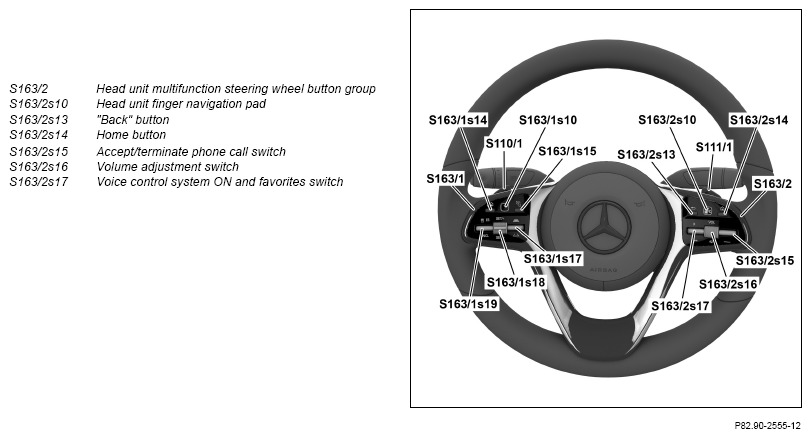

Detailed view of head unit multifunction steering wheel button group

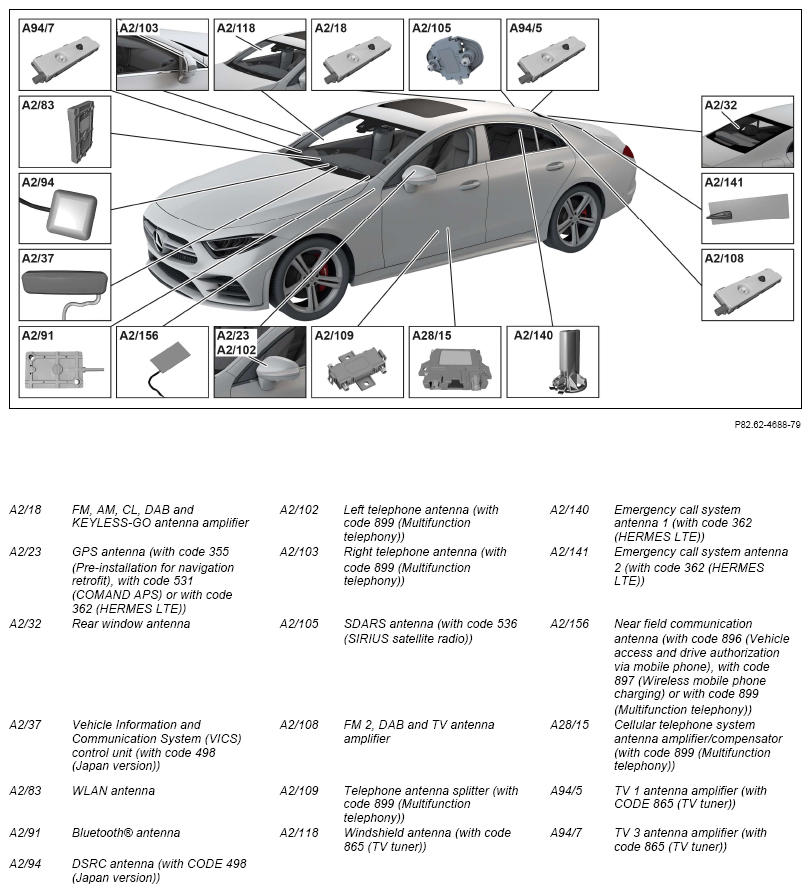

Telematics antenna system, shown on model 257.3

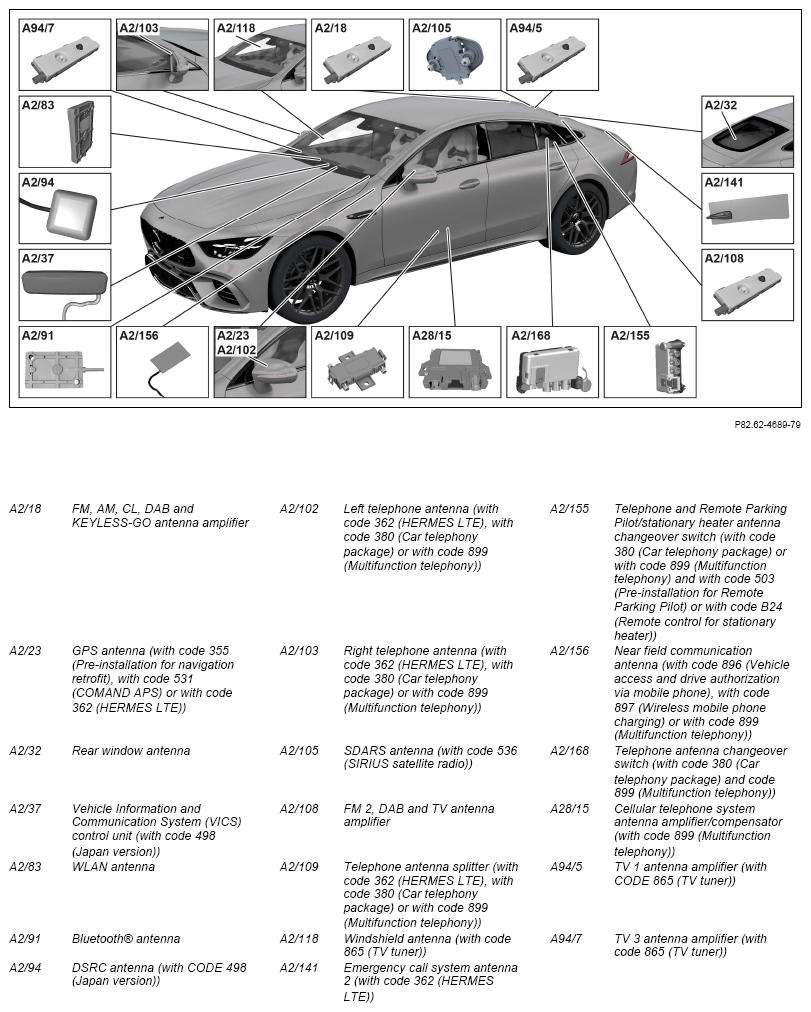

Telematics antenna system, shown on model 290.6

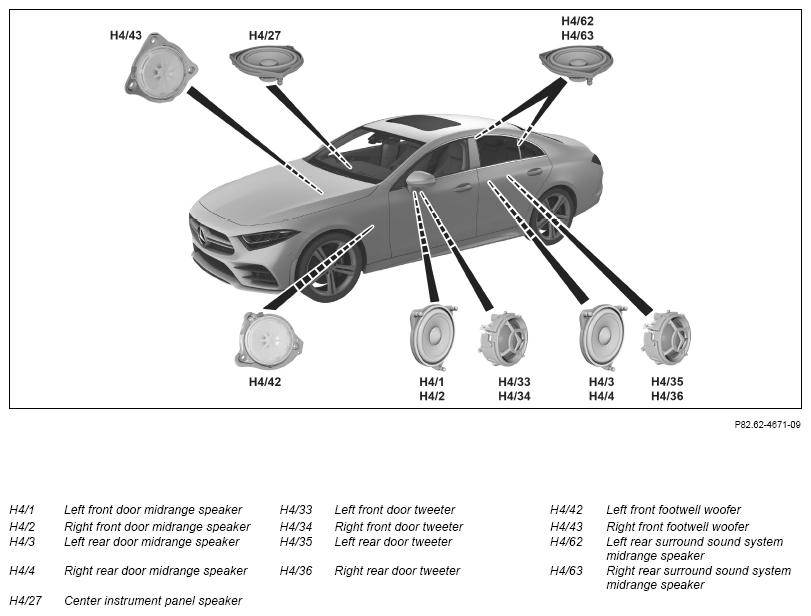

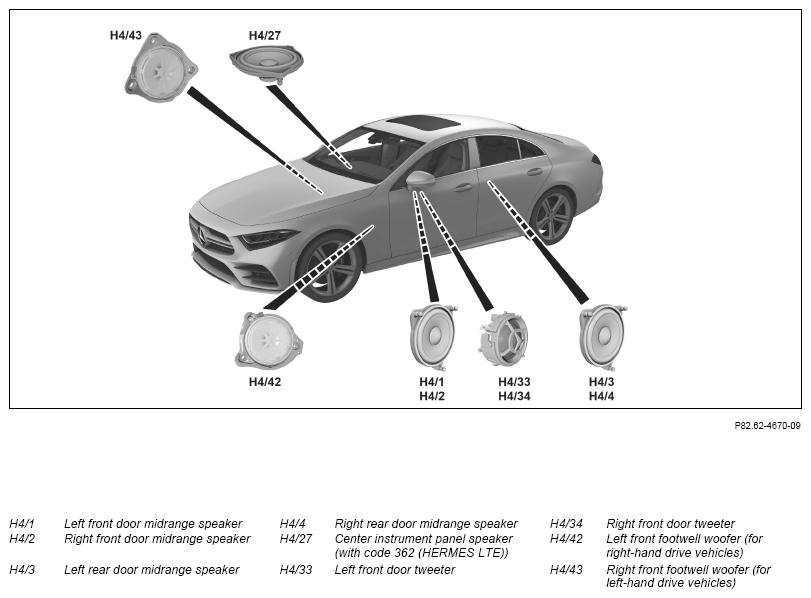

Speaker system, except code 810 (Sound system) and except code 811 (Advanced Sound System), shown on model 257.3 (except 257.361)

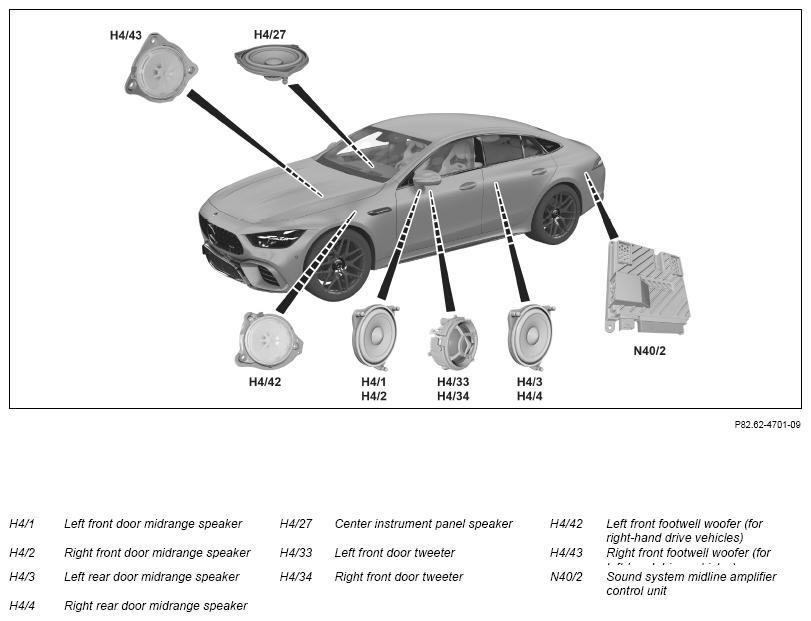

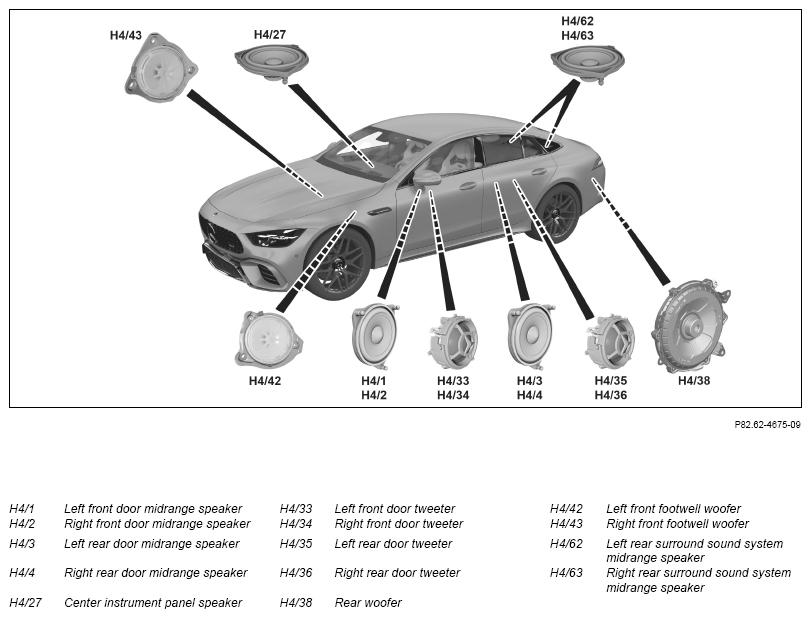

Speaker system, except code 810 (Sound-system) and except code 811 (Advanced Sound System) on model 257.361, model 290, shown on model 290.6
Speaker system with code 810 (Sound system), shown on model 257.3
Speaker system with code 810 (Sound system), shown on model 290.6

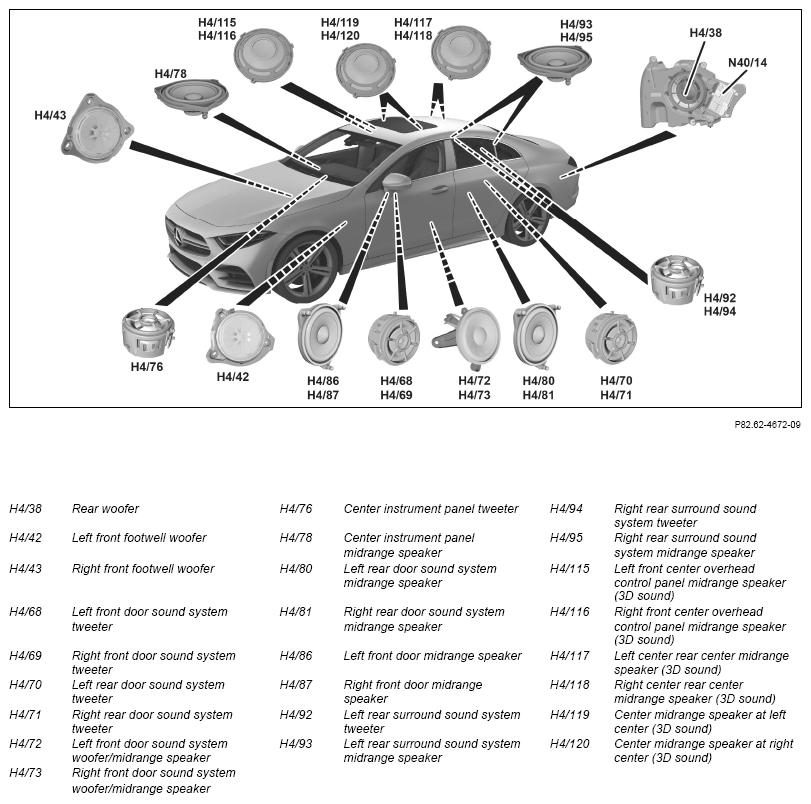

Speaker system with code 811 (Advanced Sound System) for model 257, 290, shown on model 257.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FR | |
| Head unit, component description | Model 257, 290 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRA | |
| Model 257, 290 up to model year 2021 with code 531 (COMAND APS) A26/17 |
GF82.85-P-3140FRB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150FR | |
| Component description for Audio/COMAND control panel | Model 257, 290 up to model year 2021 except code 446 (Touchpad only) A40/9 |
GF54.21-P-4501FR | |
| Touchpad, component description | Model 257, 290 up to model year 2021 with code 446 (Touchpad only) Model 257 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FR | |
| Touchscreen, component description | Model 290 up to model year 2021 with code 224 (Rear individual seat design) A105/3 |
GF54.21-P-4509FR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FR | |
| Component description for CDI control unit | Model 257 with engine 654.9 up to model year 2021 N3/9 |
GF07.16-P-6000ORD | |
| Model 257 with engine 656.9 up to model year 2021 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 257 with engine 264.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRG | |
| Model 257, 290 with engine 256.9 up to model year 2021 N3/10 |
GF07.61-P-6000MRT | ||
| Model 290 with engine 177.9 up to model year 2021 N3/10 |
GF07.61-P-6000MNL | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119FR | |
| Engine sound control unit, component description | Model 257 (except 257.361) up to model year 2021 with code B63 (Engine sound via speakers) except code 810 (Premium sound system) except code 811 (High-End sound system) N40/1 |
GF54.21-P-0019FR | |
| Component description for sound system amplifier control unit | Model 257.361, 290 up to model year 2021 except code 810 (Premium sound system) except code 811 (High-End sound system) N40/2 |
GF82.62-P-5010FRB | |
| Model 257, 290 up to model year 2021 with code 810 (Premium sound system) except code 811 (High-End sound system) N40/3 |
GF82.62-P-5010FR | ||
| Model 257, 290 up to model year 2021 with code 811 (High-End sound system) N40/7 |
GF82.62-P-5010FRA | ||
| Mercedes-Benz Intelligent Drive control unit, component description | Model 257, 290 up to model year 2021 with code 23P (Drive package) Model 257, 290 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FR | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FR | |
| Lower control panel, component description | N72/5 | GF54.25-P-4270FR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FR | |
| HERMES control unit, component description | Model 257, 290 up to model year 2021 with code 362 (HERMES communications module LTE) N112/9 |
GF82.85-P-0221FR | |
| Mobile phone cradle control unit component description | Model 257, 290 up to model year 2021 with code 897 (Front wireless telephone charging) Model 257, 290 up to model year 2021 with code 899 (Front wireless telephone charging and antenna) N123/8 |
GF82.70-P-0201FR | |
| Telephone control unit, component description | Model 290 up to model year 2021 with code 380 (Car telephony package) N123/9 |
GF82.70-P-4153FR | |
| Rear mobile phone cradle control unit, component description | Model 290 up to model year 2021 with code 898 (Wireless telephone charging in rear passenger compartment) N123/10 |
GF82.70-P-0202FR | |
| Steering wheel electronics control unit, component description | N135 | GF82.90-P-4006FR | |
| TV tuner control unit, component description | Model 257, 290 up to model year 2021 with code 865 (digital TV) N143 |
GF82.60-P-3108FR | |
| Drive unit control unit component description | Model 290 with transmission 725.0 up to model year 2021 N145/1 |
GF27.60-P-5168FR | |
| Table of contents for function description, telematics | GF82.85-P-0993FR |
