652 589 00 33 00 Pulling device - WS35.00-P-3388C

MODEL 117, 164, 166, 176, 218, 222, 231, 242, 246, 251, 292

  652 589 00 33 21 Hand pump Model 117, 164, 166, 218, 231, 242, 246, 251 FG 35/Set C WS35.00-P-3388-21C
  652 589 00 33 22 Hollow cylinder Model 164, 166, 218, 231, 251
FG/32/35/46 set C, FG 33 set B
WS35.00-P-3388-22C
  652 589 00 33 23 Hydraulic hose (complete) Model 117, 164, 166, 176, 218, 231, 242, 246, 251
FG 35/Set C
WS35.00-P-3388-23C

FG 33/35/Set C

Hand pump (21) and hydraulic hose (23) of installer and extractor in combination with hydraulic cylinder

715 589 15 34 00 for removing various bearings on rear axle.

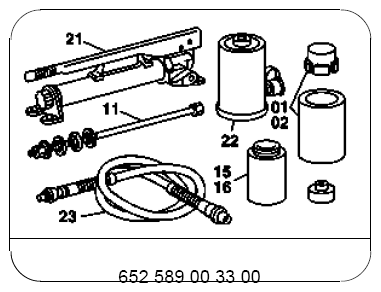

Fig 1: Pulling Device (652 589 00 33 00)
G07765461Courtesy of MERCEDES-BENZ USA
