Remove/install passenger airbag unit - AR91.60-P-0680NKA

MODEL 117, 156, 176

Shown on model 156

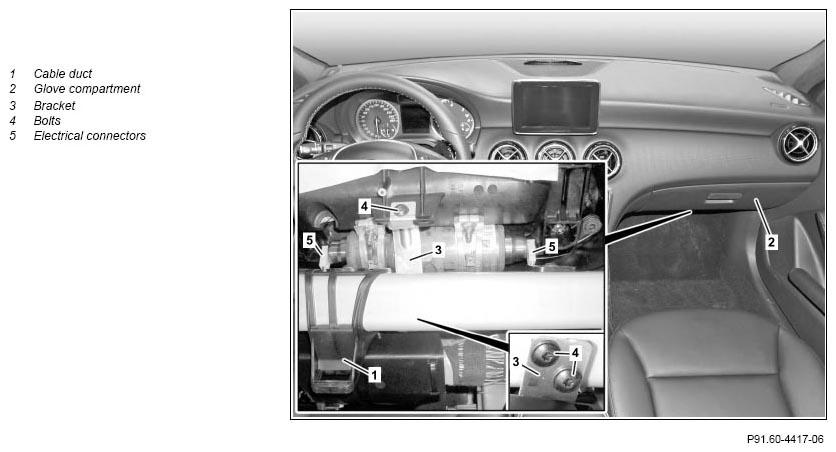

Fig 1: Passenger Airbag Unit Remove/Install Components - Shown On Model 156

Courtesy of MERCEDES-BENZ USA

Shown with removed instrument panel (6)

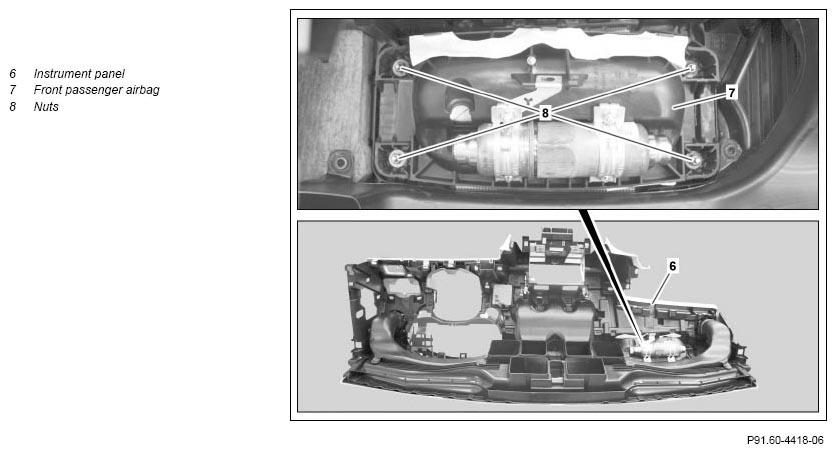

Fig 2: Passenger Airbag Unit Remove/Install Components - Shown With Removed Instrument Panel

Courtesy of MERCEDES-BENZ USA

	Risk of injury during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components.	AS91.00-Z-0008-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Disconnect battery ground line		AR54.10-P-0003NKB
3	Remove glove compartment (2)		AR68.10-P-1400NKA
4	Lift cable duct (1) in area of bracket (3) using assembly wedge and secure	Lift cable duct (1) carefully and only until screws/bolts (4) are accessible. Otherwise, the cable duct (1) may fracture.
4		Mounting wedge	Figure
5	Remove bolts (4)	Bolt, front passenger airbag unit to cross member under dashboard	*BA91.60-P-1008-01F
6	Remove bracket (3)
7	Release and disconnect electrical connectors (5)
8	Unscrew nuts (8)	Nut, front passenger airbag unit to instrument panel	*BA91.60-P-1002-01F
9	Lift instrument panel (6) with assistant slightly and remove front passenger airbag (7)	Only raise instrument panel (6) far enough to gain access to the front passenger airbag (7). Otherwise, the instrument panel (6) may be damaged.
10	Install in the reverse order
	Check
11	Check and erase vehicle fault memory using diagnostic system	When replacing front passenger airbag (7).
			AD00.00-P-2000-04A

AIRBAG

Number	Designation		Model 117	Model 156
BA91.60-P-1002-01F	Nut, front passenger airbag unit to instrument panel	Nm	5	5

AIRBAG

Number	Designation		Model 176
BA91.60-P-1002-01F	Nut, front passenger airbag unit to instrument panel	Nm	5

AIRBAG

Number	Designation		Model 117	Model 156
BA91.60-P-1008-01F	Bolt, front passenger airbag unit to cross member under dashboard	Nm	3, 5.	3, 5

AIRBAG

Number	Designation		Model 176
BA91.60-P-1008-01F	Bolt, front passenger airbag unit to cross member under dashboard	Nm	3, 5

Fig 3: Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
