Remove/install center muffler - AR49.10-P-4816MT

ENGINE 270 in MODEL 117, 156, 176, 242, 246

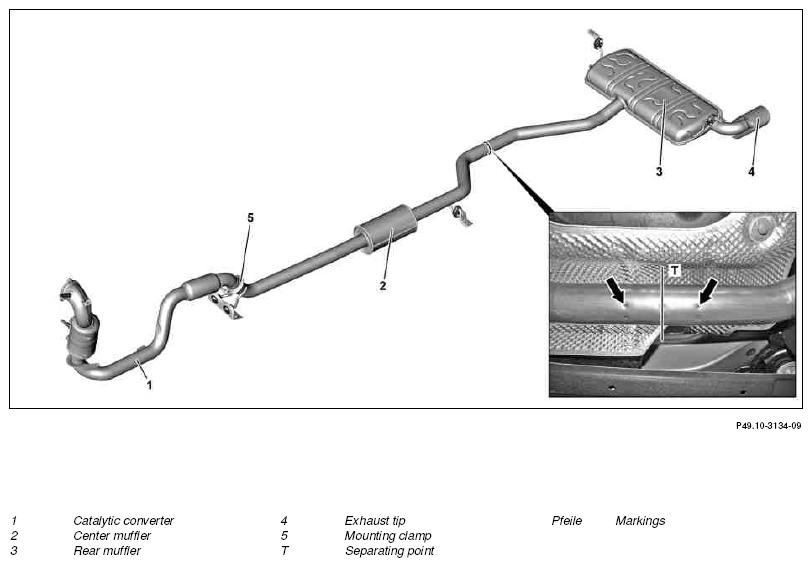

Shown on model 246 with engine 270 up to model year 2015

Fig 1: Center Muffler Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

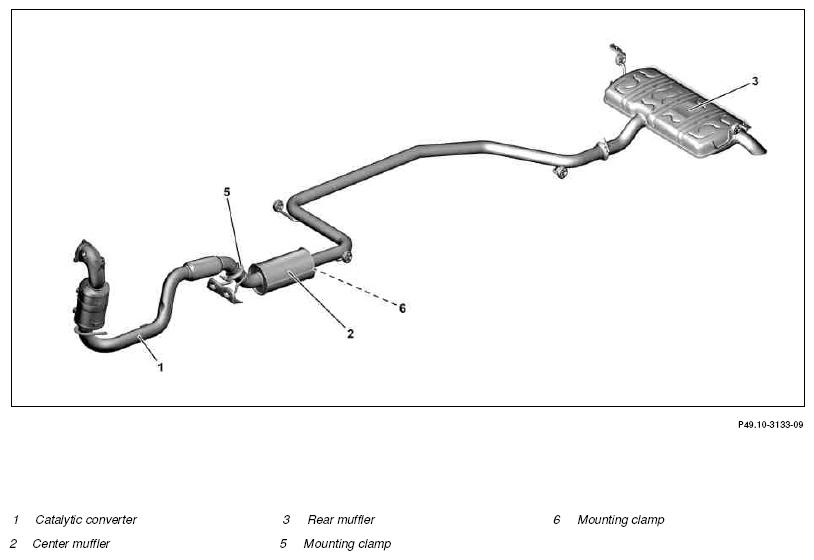

Shown on model 242 with engine 270

Fig 2: Center Muffler Remove/Install Components - Shown On Model 242

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove
1	Lift vehicle on vehicle lift		AR00.60-P-1000AK
2.1	Disconnect center muffler (2) at connecting point (T)	Engine 270 in model 117, 156, 176, 246 For first-time replacing of the center muffler (2).
		Clamp, rear muffler to center muffler or diesel particulate filter	*BA49.10-P-1010-01AL
2.2	Detach mounting clamp (6)	Engine 270 in model 242
3	Detach repair clamp at connecting point (T)	Engine 270 in model 117, 156, 176, 246 After first-time replacing of the center muffler (2).
4	Detach mounting clamp (5) of center muffler (2) on catalytic converter	Engine 270 in model 156	AR49.10-P-5500NKX
		Engine 270 in model 117, 176, 242, 246	AR49.10-P-5500MT
5	Pull center muffler (2) out of elastomer bearings and remove downwards
	Clean
6	Remove combustion and corrosion residues on connecting points of rear muffler (3) and of center muffler (2)
	Check
7	Check elastomer bearings for damage	If damage is present ↓ Replace elastomer bearing.
	Install
8	Introduce center muffler (2) in elastomer bearings	Apply lubricating paste to the elastomer bearings.
		Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
9	Mount mounting clamp (5) of center muffler (2) on catalytic converter	Engine 270 in model 156	AR49.10-P-5500NKX
		Engine 270 in model 117, 176, 242, 246	AR49.10-P-5500MT
10.1	Attach new repair clamp between center muffler (2) and rear muffler (3) and align	Engine 270 in model 117, 156, 176, 246 Align repair clamp to the markings (arrows).
10.2	Mount mounting clamp (6)	Engine 270 in model 242 Replace mounting clamp (6).
		Clamp, rear muffler to center muffler or diesel particulate filter	*BA49.10-P-1010-01AL
11	Align center muffler (2) and rear muffler (3) unstressed
12.1	Tighten repair clamp	Engine 270 in model 117, 156, 176, 246
		Clamp, rear muffler to center muffler or diesel particulate filter	*BA49.10-P-1010-01AL
12.2	Fasten mounting clamp (6)	Engine 270 in model 242
		Clamp, rear muffler to center muffler or diesel particulate filter	*BA49.10-P-1010-01AL
13	Lower vehicle from vehicle lift		AR00.60-P-1000AK
	Check
14	Check installation position and unobstructed movement of center muffler (2) and rear muffler (3)
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Carry out an engine test run and check exhaust system for leaktightness
