Remove/install fog lamp - AR82.10-P-5103NKB
MODEL 117, 156, 246 with CODE U37 (Front fog lamps)
MODEL 176 up to model year 2016 with CODE U37 (Front fog lamps)

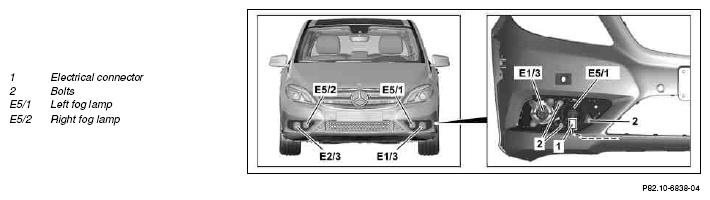

Shown on model 246 with code 257 (LED daytime running lights, round)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000AK | |
| 2 | Turn left front complete wheel or right front complete wheel inwards | ||
| 3 | Detach fender liner in area of bumper until left front fog lamp (E5/1) or right front fog lamp (E5/2) is accessible | AR88.10-P-1300NKB | |
| 4 | Disconnect electrical connector (1) | ||
| 5 | Remove bolts (2) | ||
| 6 | Remove left front fog lamp (E5/1) or right front fog lamp (E5/2) towards the rear | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check adjustment of left front fog lamp (E5/1) and right front fog lamp (E5/2) | ||
| AP82.10-P-8260GI | |||
| For wrong position ↓ Adjust left front fog lamp (E5/1) and right front fog lamp (E5/2) |
