Remove/install door module - AR72.10-P-0900NKC
MODEL 117
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical components to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such components. | AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

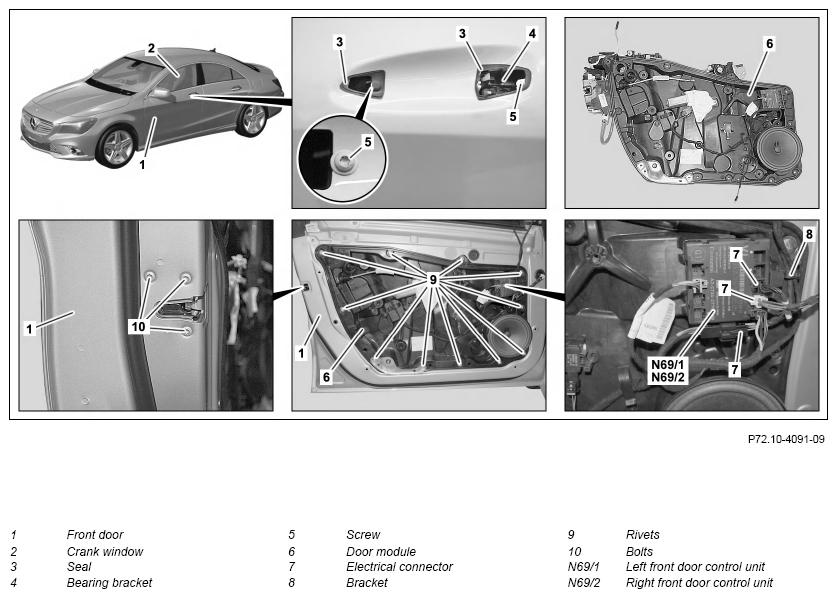

| 1 | Remove crank window (2) | AR72.10-P-1900NKC | |
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003NKB | |
| 4 | Remove outside door handle | ||
| 5 | Take off gaskets (3) | ||
| 6 | Loosen bolts (5), push bearing bracket (4) toward front and unhook | ||
| 7 | Disconnect electrical connectors (7) from left front door control unit (N69/1) or right front door control unit (N69/2) | ||
| 8 | Guide electrical wiring harness out of bracket (8) | ||
| 9 | Remove bolts (10) | ||
| 10 | Drill out rivet heads from rivets (9) | ||
| 000 588 02 39 00 Rivet press tool | WS60.00-P-0010B | ||

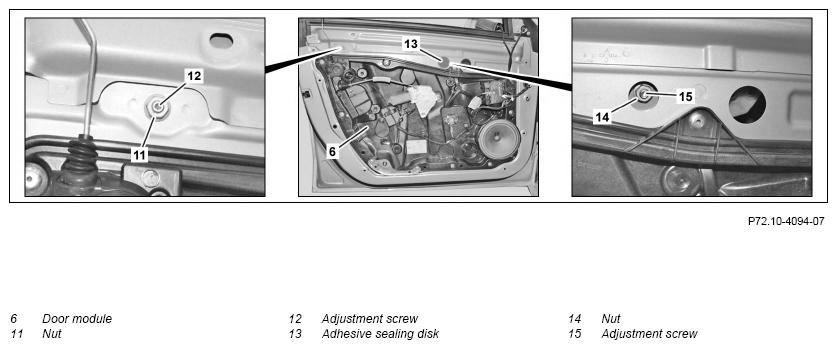

| 11 | Unscrew nut (11) | ||
| Fig 6 | |||
| Fig 3 | |||
| 12 | Remove adhesive sealing disk (13) | ||
| 13 | Unscrew nut (14) | ||
| Fig 6 | |||
| Fig 3 | |||
| 14 | Loosen door module (6) from front door (1) and remove | Figure | |
| 15 | Press out any pieces of rivets remaining in the inner door panel | Fig 5 | |
| 16 | Completely remove rivet residues and drilling chips from front door (1) | Otherwise remaining rivet residues cause corrosion damage on front door (1). |
|
| 17 | Install in the reverse order |
