Retrofit Drive Kit Plus for smartphones - AZ82.60-P-0027NKB

MODEL 117 (except 117.352) up to 11/2/14 up to model year 2015 with CODE 510 (Audio 20 CD with 6-disc CD changer)

MODEL 117 (except 117.352) up to 11/2/14 up to model year 2015 with CODE 512 (COMAND APS with DVD changer)

MODEL 117 (except 117.352) up to 11/2/14 up to model year 2015 with CODE 523 (Audio 20 CD)

MODEL 117 (except 117.352) up to 11/2/14 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 156 (except 156.952) up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer)

MODEL 156 (except 156.952) up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD)

MODEL 176 (except 176.052) up to 8/31/15 up to model year 2016 with CODE 510 (Audio 20 CD with 6-disc CD changer)

MODEL 176 (except 176.052) up to 8/31/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer)

MODEL 176 (except 176.052) up to 8/31/15 up to model year 2016 with CODE 523 (Audio 20 CD)

MODEL 176 (except 176.052) up to 8/31/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 246 up to 11/2/14 up to model year 2015 with CODE 510 (Audio 20 CD with 6-disc CD changer)

MODEL 246 up to 11/2/14 up to model year 2015 with CODE 523 (Audio 20 CD)

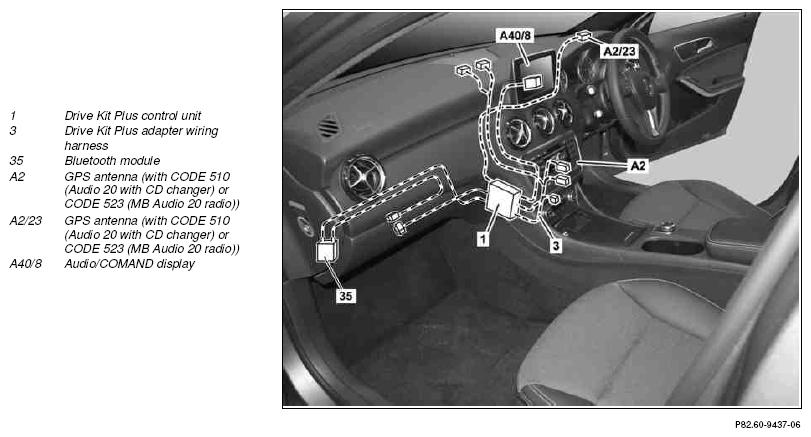

Drive Kit Plus routing diagram for smartphone, shown on MODEL 176 with CODE 510 (Audio 20 with CD changer), right-hand drive vehicle

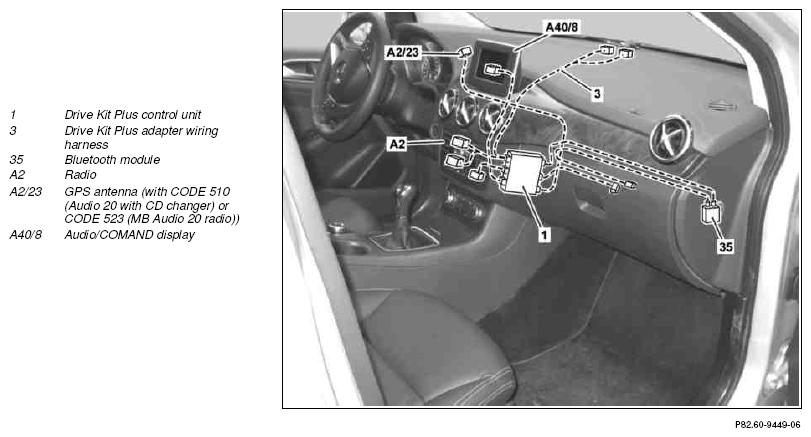

Drive Kit Plus routing diagram for smartphone, shown on MODEL 246 with CODE 510 (Audio 20 with CD changer), left-hand drive vehicle

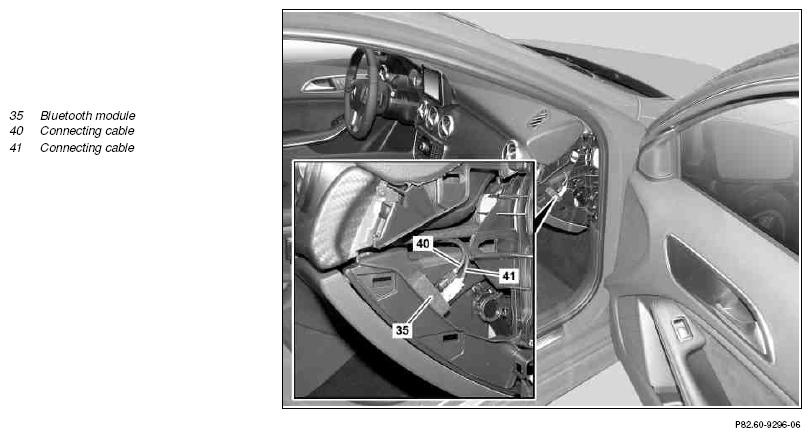

Installation location of Bluetooth module (35) with Drive Kit Plus for smartphones, shown on MODEL 176, left-hand drive vehicle

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
		MODEL 117, 156, 176	AR68.10-P-1400NKA
		MODEL 246	AR68.10-P-1400NKB
3	Remove audio component
		MODEL 117, 156, 176, 246	AR82.60-P-7502NKB
4	Remove Audio/COMAND display (A408)
		MODEL 117, 156, 176, 246	AR82.60-P-7722NKB
5	Remove instrument cluster
		MODEL 117, 156, 176, 246	AR54.30-P-6015NKB
6	Remove covers on center console
		With CODE 518 (Media Interface) Only remove front and rear center console cover.	AR68.20-P-2350NKB
	Install
7	Prepare vehicle for retrofitting Drive Kit Plus for Smartphones		AZ82.60-P-0027-08NKB
8	Retrofit Drive Kit Plus adapter wiring harness (3)		AZ82.60-P-0027-01NKB
		Long wedge	Figure
9	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness		AZ82.60-P-0027-04NKB
10	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or with CODE 523 (MB Audio 20 radio)	AZ82.60-P-0027-06NKB
11	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0027-05NKB
12	Retrofit Drive Kit Plus connecting wiring harness	MODEL 117, 156, 176	AZ82.60-P-0027-02NKA
		MODEL 246	AZ82.60-P-0027-02NKB
13	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03NKB
14	Install glove compartment with connection line (40), connection line (41) and data line of Drive Kit Plus connecting wiring harness
		MODEL 117, 156, 176	AR68.10-P-1400NKA
		MODEL 246	AR68.10-P-1400NKB
15	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07NKB
16	Install AV adapter	For other manufacturers of the AV adapter, see ODUS: Services and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
17	Install remaining parts
18	Perform software update for radio (A2)
19	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
20	Perform variant coding with XENTRY using the software calibration number (SCN)
21	Disconnect Star Diagnosis
			AD00.00-P-2000-04A
	Update Vehicle Documentation (VeDoc)
22	Attach note "Drive Kit Plus for smartphone retrofitted as per AZ82.60-P-0027NKB " to design group 68 and 82 under field organization texts
23	Enter special equipment via VeDoc in online vehicle data card - Code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
	Check
24	Perform function check on Drive Kit Plus for smartphone	See Owner's Manual.

Part no.	Designation	Quantity
KG 98	Installation kit of Drive Kit Plus for smartphones	1
