Retrofit COMAND Online incl. DVD changer - AN82.85-P-0008NKH

MODEL 117.3 with CODE 505 (Radio 20 NTG5, not navigation-enabled) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 523 (Audio 20 CD) without CODE 531 (COMAND APS)

MODEL 117.3 with CODE 520 (Audio 20 USB) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 523 (Audio 20 CD) without CODE 531 (COMAND APS)

MODEL 117.3 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 CD with 6-disc CD changer) without CODE 523 (Audio 20 CD) without CODE 531 (COMAND APS)

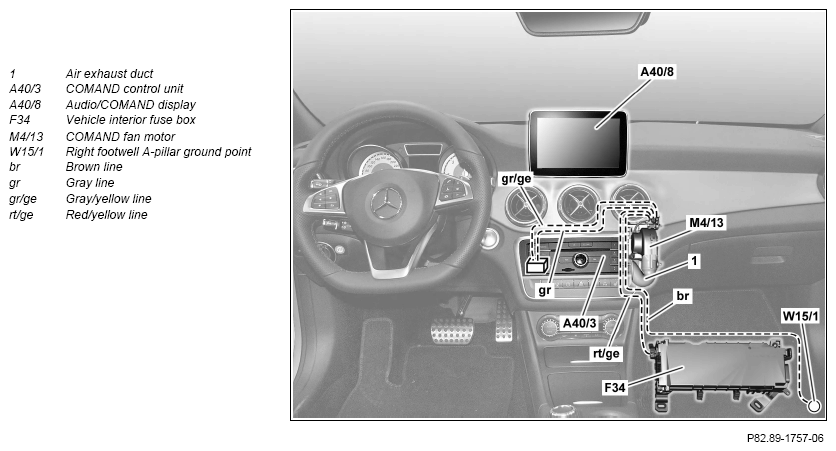

Fig 1: COMAND Control Unit Related Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Disconnect battery ground line
			AR54.10-P-0003NKB
3	Remove radio
			AR82.60-P-7502NKB
		The removed radio is no longer required.
4	Remove 14.7 cm Audio/COMAND display (A40/8)
			AR82.60-P-7722NKB
		The 14.7 cm Audio/COMAND display (A40/8) is no longer required.
5	Remove instrument cluster
			AR54.30-P-6015NKB
6	Remove glove compartment
			AR68.10-P-1400NKA
	Install
7	Retrofit antenna for global positioning system (GPS)		AN82.61-P-7474-04NKH
		Self-adhesive Velcro fastener	*BR00.45-Z-1084-02A
8	Retrofit COMAND fan motor (M4/13)		AN82.85-P-0005-01NKB
9	Retrofit electrical wiring harness for COMAND fan motor		AN82.85-P-0005-02NKH
		Right footwell A-pillar ground point	*BA00.19-P-1020-01B
10	Install 17.8 cm Audio/COMAND display (A40/8)
			AR82.60-P-7722NKB
11	Install new COMAND controller unit (A40/3) (COMAND On-line incl. DVD changer)
			AR82.60-P-7502NKB
12	Install remaining parts
	Update Vehicle Documentation (VeDoc)
13	Delete special equipment in online vehicle data card	MODEL 117.3 with CODE 505 (Radio 20 NTG5 non-navigation-capable) CODE 505 (Radio 20 NTG5 non-navigation-capable)
14	Delete special equipment in online vehicle data card	MODEL 117.3 with CODE 520 (Audio 20 USB) CODE 520 (Audio 20 USB)
15	Delete special equipment in online vehicle data card	MODEL 117.3 with CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT) CODE 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
16	Enter special equipment in online vehicle data card	CODE 531 (COMAND APS) CODE 814 (DVD changer)
17	Attach note "COMAND On-line with DVD changer retrofitted as per AN82.85-P-0008NKH " under field organization texts to design group 82
18	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
19	Carry out variant coding using software calibration number (SCN)	"Instrument cluster" "Head unit"
20	Carry out variant coding using software calibration number (SCN)	MODEL 117.3 with CODE 218 (Reversing camera) "Reversing camera"
21	Carry out variant coding using software calibration number (SCN)	MODEL 117.3 with CODE 350 (Ecall Europe emergency call system), MODEL 117.3 with CODE B54 (Live Traffic Information) "Communications module"
22	Disconnect diagnostic system
			AD00.00-P-2000-04A
