Remove/Install Front Seat Height Adjustment Motor - AR91.29-P-0007LW
Model 205, 213, 238, 253, 293
| Topical note | Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||

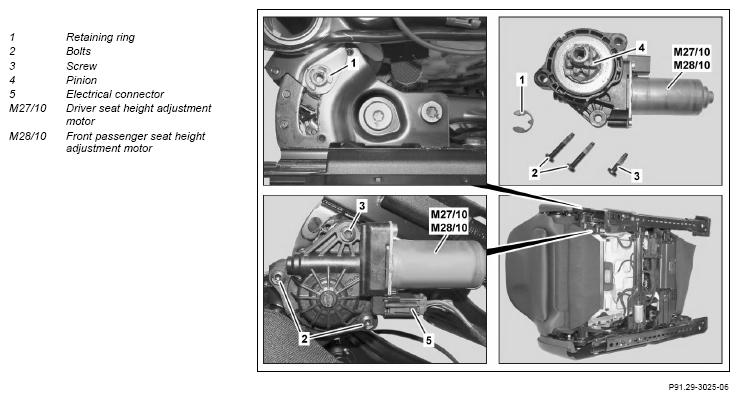

| 1 | Remove front seat and place to one side on a suitable mat. | Model 205.4 | AR91.10-P-1000LWR |
| Model 205 (except 205.4), 213, 238, 253, 293 | AR91.10-P-1000LW | ||
| 2 | Disconnect electrical connector (5). | ||
| 3 | Remove retaining ring (1). | Check retaining ring (1). If there is a problem, 1 Replace retaining ring (1). |
|
| 4 | Remove screw (3). | Note left-hand thread of screw/bolt (3). Bolt (3) is shorter than the bolts (2). Replace screw/bolt(3). Bolt, electric motor for seat height adjustment to seat adjustment unit |
*BA91.10-P-1005-01T |
| 5 | Unscrew bolts (2). | Replace screw/bolts (2). Bolt, electric motor for seat height adjustment to seat adjustment unit |
*BA91.10-P-1005-01T |
| 6 | Remove seat adjustment motor for seat height adjustment (M27/10, M28/10). | ||
| 7 | Install in the reverse order |
FRONT SEATS
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA91.10-P-1005-01T | Bolt, electric motor for seat height adjustment to seat adjustment unit | Nm | 4 | 4 |
FRONT SEATS
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.10-P-1005-01T | Bolt, electric motor for seat height adjustment to seat adjustment unit | Nm | 4 | 4 |
FRONT SEATS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.10-P-1005-01T | Bolt, electric motor for seat height adjustment to seat adjustment unit | Nm | 4 |
