Check All Visible Parts In Engine Compartment For Damage And Fluid Loss - AP00.20-P-0055C

Model 205

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
Notice	Notes on battery		AH54.10-P-0001-01A
	Notes on evaluating leakages		AH00.00-P-0011-01KOA
	Check

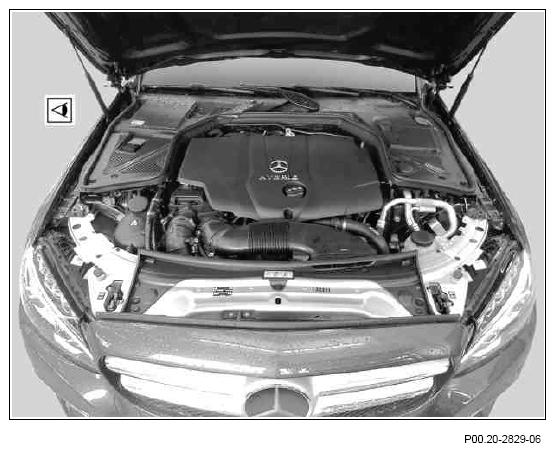

1	Check that visible systems and components in engine compartment are in good condition, are not leaking and are attached securely	Engine and bolted-on major assemblies and exhaust system Hybrid components (equipment specific) Cooling system Heater and air conditioning system Fuel system Steering Brake system If there are complaints: ↓ Rectify problem subject to separate repair order.
2	Check that visible lines and hoses in engine compartment are in good condition, are not leaking, are routed correctly and are attached securely	- Engine and bolted-on major assemblies and exhaust system Hybrid components (equipment specific) Cooling system Heater and air conditioning system Fuel system Steering Brake system Clutch operating system Electrical components If there are complaints: ↓ Rectify problem subject to separate repair order.
3	Check visible systems, components and body panels, lines and hoses in engine compartment on vehicle for damage, routing, leaks, mounting and corrosion		AP00.20-P-0054E
