Replace Torque Converter Housing - AR27.40-P-0002EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 (except 725.007/017/037/047)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||

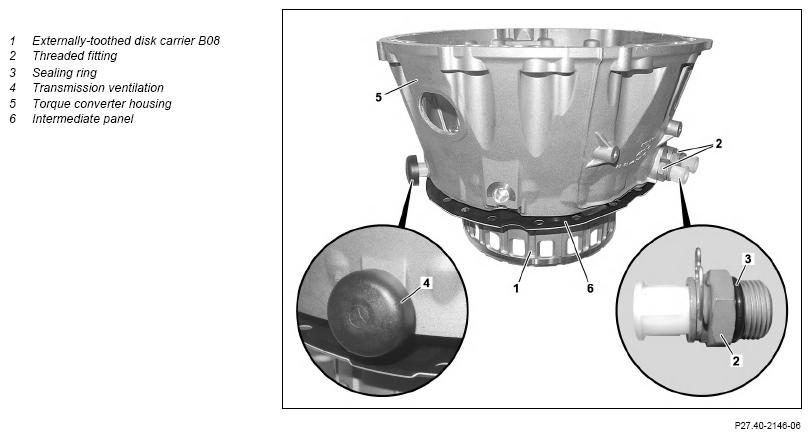

| 1 | Remove external plate carrier B08 (1) | AR27.50-P-0617EWM | |
| 2 | Remove intermediate panel (6) | ||
| 3 | Remove threaded fittings (2) | ||
| 4 | Remove transmission ventilation (4) | ||
| Install | |||
| 5 | Install transmission ventilation (4) with new sealing ring | ||
| 6 | Install threaded fittings (2) with new sealing rings (3) | *BA27.10-P-1007-04H | |
| 7 | Check intermediate panel (6) for damage and replace if necessary | ||
| 8 | Position intermediate panel (6) at torque converter housing (5) | ||
| 9 | Install external plate carrier B08 (1) | AR27.50-P-0617EWM |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
