Tightening Specification For Crankshaft Bearing Cap Screws/Bolts - AR03.20-P-4351-06MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
CRANKSHAFT BEARING CAP
| Number |
Designation |
Engine 264 |
| BA03.20-P-1001-01O |
Bolt for crankshaft bearing cap |
Stage 1 |
Nm |
36 |
| Stage 2 |
∠° |
120 |

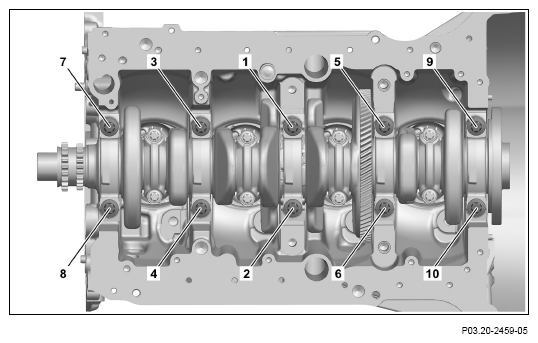

- Tighten the screws (1 to 10) to stage 1 in ascending numerical sequence
.
- Tighten the screws (1 to 10) to stage 2 in ascending numerical sequence
.
Observe tightening sequence.
Engine damage can occur otherwise.
 Courtesy of MERCEDES-BENZ USA
|
