Remove/Install Piston Rings - AR03.10-P-7311MR

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 133 in model 117, 156, 176

Engine 270 in model 117, 156, 176, 242, 246

Engine 274.9 in model 172, 204, 205, 207, 212, 218, 253

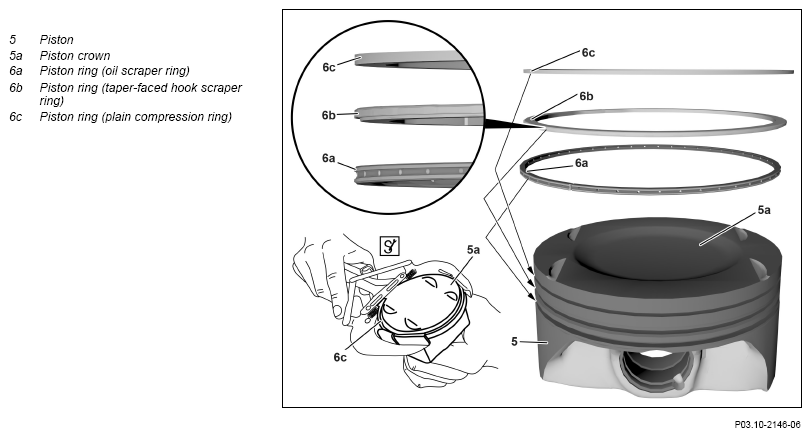

G14547559Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove piston (5)   AR03.10-P-7021MR
2 Measure vertical clearance of piston rings   AR03.10-P-7311-01MR
    Piston ring vertical clearance *BE03.10-P-1001-05L
3 Remove piston ring (plain compression ring) (6c) with piston ring pliers SPECIAL TOOL Pliers Fig 1
4 Remove piston ring (taper-faced hook scraper ring) (6b) with piston ring pliers SPECIAL TOOL Pliers Fig 1
5 Remove piston ring (oil scraper ring) (6a) by hand
6 Clean piston rings and piston ring grooves Assembly cleaner *BR00.45-Z-1028-04A
7 Check the crankcase, crankshaft, piston and connecting rod for damage and wear If damaged or worn
↓
Replace affected component.
8 Measure piston ring end gap   AR03.10-P-7311-02MR
    Piston ring end gap *BE03.10-P-1002-05L
INSTALLING Install
9 Attach piston ring (oil scraper ring) (6a) by hand
10 Install piston ring (taper-faced hook scraper ring) (6b) with piston ring pliers IMPORTANT Observe installation position of piston ring (taper-faced hook scraper ring) (6). The marking N  must point upwards.
    SPECIAL TOOL Pliers Fig 1
11 Install piston ring (plain compression ring) (6c) with piston ring pliers IMPORTANT Observe installation position of piston ring (plain compression ring) (6c). The marking N  must point upwards.
    SPECIAL TOOL Pliers Fig 1
12 Offset piston ring end gaps for piston ring (6a, 6b, 6c) by 120° respectively on the circumference of the piston (5)
13 Install piston (5)   AR03.10-P-7021MR
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 133 Engine 270.910 up to 2/28/14 except code 933 (Add.parts f.telematic alarm identific.) Engine 270.920 up to 2/28/14 except code 924 (Bivalent natural gas drive)
BE03.10-P-1001-05L Piston ring vertical clearance Groove 1 mm 0, 02...0, 065 0, 04...0, 075
Groove 2 mm 0, 02...0, 06 0, 03...0, 07
Groove 3 mm - -
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 270.910 up to 2/28/14 with code 933 (Add.parts f.telematic alarm identific.) Engine 270.910/920 as of 3/1/14 Engine 270.920 up to 2/28/14 with code 924 (Bivalent natural gas drive) Engine 274.910 up to 2/28/14 in model 204, 212 Engine 274.920 up to 2/28/14 in model 204, 207, 212
BE03.10-P-1001-05L Piston ring vertical clearance Groove 1 mm 0, 04...0, 075 0, 04...0, 075
Groove 2 mm 0, 03...0, 07 0, 03...0, 07
Groove 3 mm - -
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 274.9 in model 167, 172, 205, 213, 218, 238, 253 Engine 274.910 as of 3/1/14 in model 204, 212 Engine 274.920 as of 3/1/14 in model 204, 207, 212
BE03.10-P-1001-05L Piston ring vertical clearance Groove 1 mm 0, 04...0, 075
Groove 2 mm 0, 03...0, 07
Groove 3 mm 0, 01...0, 18
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 133 Engine 270.910 up to 2/28/14 except code 933 (Add.parts f.telematic alarm identific.) Engine 270.920 up to 2/28/14 except code 924 (Bivalent natural gas drive)
BE03.10-P-1002-05L Piston ring end gap Groove 1 mm 0, 18...0, 30 0, 2...0, 35
Groove 2 mm 0, 3...0, 5 0, 3...0, 5
Groove 3 mm 0, 2...0, 7 0, 2...0, 7
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 270.910 up to 2/28/14 with code 933 (Add.partsf.telematic alarm identific.) Engine 270.910/920 as of 3/1/14 Engine 270.920 up to 2/28/14 with code 924 (Bivalent natural gas drive) Engine 274.910 up to 2/28/14 in model 204, 212 Engine 274.920 up to 2/28/14 in model 204, 207, 212
BE03.10-P-1002-05L Piston ring end gap Groove 1 mm 0, 18...0, 30 0, 2...0, 35
Groove 2 mm 0, 3...0, 5 0, 3...0, 5
Groove 3 mm 0, 2...0, 7 0, 2...0, 7
CHECK VALUES FOR PISTON RINGS

Number Designation Engine 274.9 in model 167, 172, 205, 213, 218, 238, 253 Engine 274.910 as of 3/1/14 in model 204, 212 Engine 274.920 as of 3/1/14 in model 204, 207, 212
BE03.10-P-1002-05L Piston ring end gap Groove 1 mm 0, 18...0, 30
Groove 2 mm 0, 3...0, 5
Groove 3 mm 0, 2...0, 7
Fig 1: Identifying Pliers (000 589 51 37 00)
G13655417Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
