Measure Vertical Clearance Of Piston Rings - AR03.10-P-7311-01MRH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264

CHECK VALUES FOR PISTON RINGS

Number	Designation			Engine 264.915	Engine 264.920
BE03.10-P-1001-05L	Piston ring vertical clearance	Groove 1	mm	0, 04...0, 08	0, 035...0, 075
		Groove 2	mm	0, 03...0, 07	0, 02...0, 06
		Groove 3	mm	0, 01...0, 18	0, 19...0, 31

There should be no combustion residues in the piston ring groove during measurement.

Otherwise a false measurement will be taken.

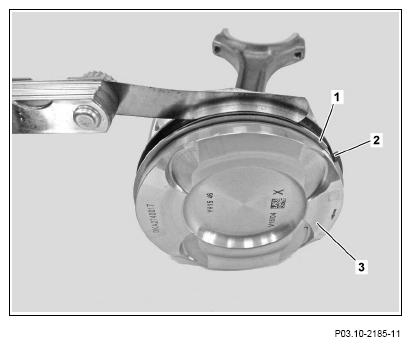

Measure the height clearance of the plain compression ring (1) in groove 1.
Commercially available devices/tools

Feeler gauge

If height clearance is outside tolerance

↓

Replace the plain compression ring (1), taper-faced hook scraper ring (2), and oil scraper ring together with the piston (3).
Measure the height clearance of the taper-faced hook scraper ring (2) in groove 2.

Courtesy of MERCEDES-BENZ USA

Commercially available devices/tools

Feeler gauge

If height clearance is outside tolerance

↓

Replace the plain compression ring (1), taper-faced hook scraper ring (2) and oil scraper ring together with the piston (3).
Measure the height clearance of the oil scraper ring in groove 3.
Commercially available devices/tools

Feeler gauge

If height clearance is outside tolerance

↓

Replace the plain compression ring (1), taper-faced hook scraper ring (2), and oil scraper ring together with the piston (3).
