Check Connecting Rod Bolts - AR03.10-P-6111-01MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
CHECK VALUES FOR CONNECTING ROD BOLTS
| Number |
Designation |
Engine 264 |
| BE03.10-P-1001-03K |
Connecting rod bolts |
Thread diameter |
|
M |
7 x 1 |
| Shank length |
When new |
mm |
38 |
| max. |
mm |
38, 4 |

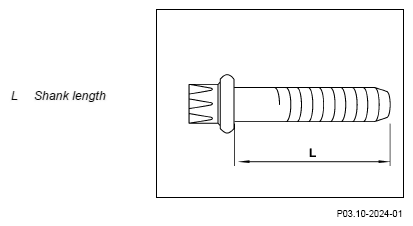

- Measure shank length (L).
If the shaft length (L) exceeds the maximum permissible dimensions.
↓
Replace connecting rod bolts.
 Courtesy of MERCEDES-BENZ USA
|
