Assign Crankshaft Bearing Shells - AR03.20-P-4360-01MRH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264

Courtesy of MERCEDES-BENZ USA

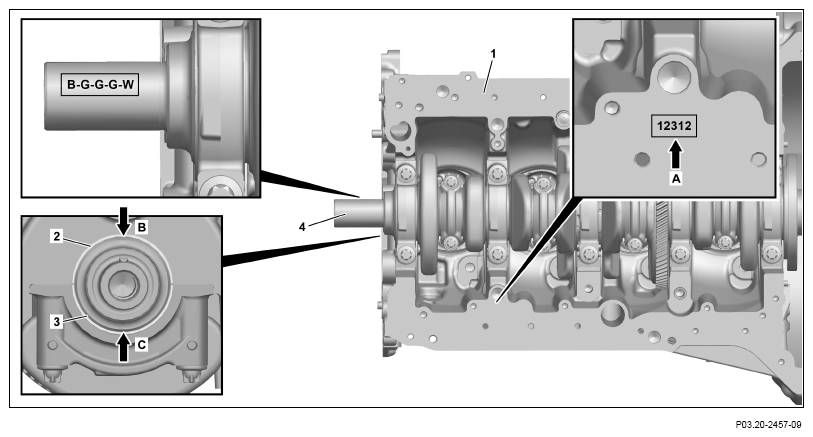

Assignment of upper crankshaft bearing shells (2)

The number 1 represents the color marking blue.

The number 2 represents the color marking yellow.

The number 3 represents the color marking red.

Read the assignment numbers of the upper crankshaft bearing shells (2) on the crankcase (1) at position (arrow A).
Location of the assignment numbers matches the sequence of the crankshaft bearing points in the crankcase (1).
Assign the matching upper crankshaft bearing shells (2) using the identified assignment numbers.
The color coding of the upper crankshaft bearing shells (2) has been attached on the side (arrow B).

Assignment of the lower crankshaft bearing shells (3)

The letter B represents the color marking blue.

The letter G represents the color marking yellow.

The letter R represents the color marking red.

The letter W represents the color marking white.

The letter V represents the color marking violet.
Read the assignment letters of the lower crankshaft bearing shells (3) from the crankshaft journal (4).
The location of the assignment letters matches the sequence of the crankshaft bearing points.
Assign the matching lower crankshaft bearing shells (3) using the identified assignment letters.
The color coding of the lower crankshaft bearing shells (3) has been attached on the side (arrow C).
