Assign Connecting Rod Bearing Shells - AR03.10-P-6112-01MRH
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264
Install matching color combinations only.
Engine damage will occur otherwise.

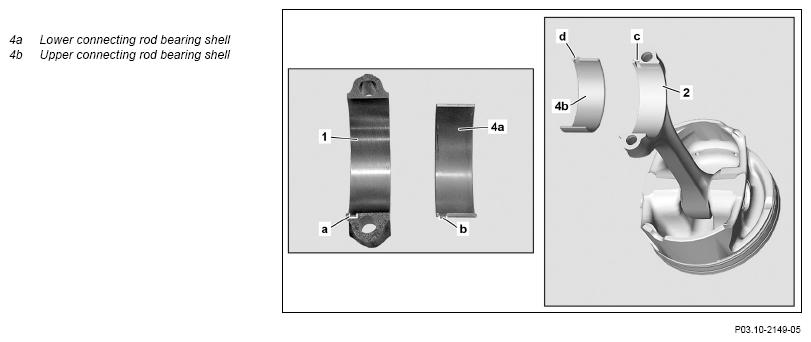

The color coding is attached to the side on the connecting rod bearing shell (4a, 4b).
- If the top connecting rod bearing shell (4b) is yellow, the bottom connecting rod bearing shell (4a) must be yellow.
- If the top connecting rod bearing shell (4b) is blue, the bottom connecting rod bearing shell (4a) must be red.
- If the top connecting rod bearing shell (4b) is red, the bottom connecting rod bearing shell (4a) must be blue.
