Remove/Install Camshaft Solenoid - AR05.20-P-7295MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205
Engine 274.9 in model 253
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove charge air pipe upstream of charge air cooler | ||
| 3 | Release and disconnect electrical connection on intake camshaft solenoid (Y49/1) and exhaust camshaft solenoid (Y49/2) | ||

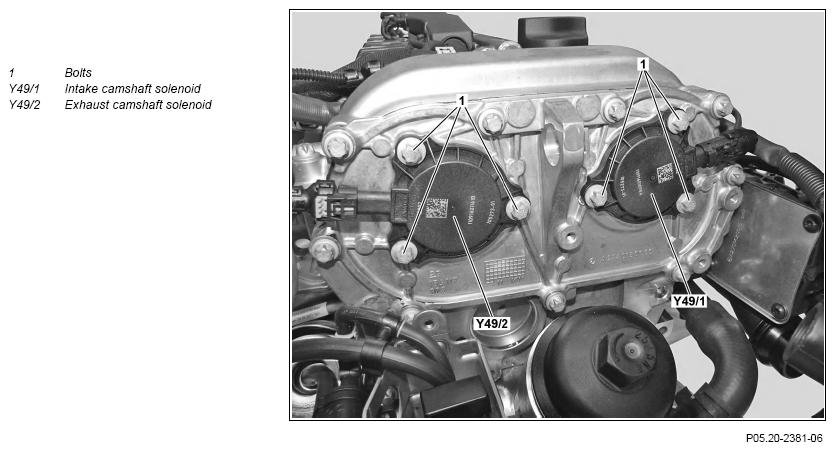

| 4 | Remove screw/bolts (1) of respective solenoids (Y49/1 or Y49/2) | *BA15.10-P-1003-03I | |
| 5 | Remove intake camshaft solenoid (Y49/1) or exhaust camshaft solenoid (Y49/2) from front cover | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine for proper operation and leaktightness | ||
| 9 | Install upper engine cover |
POSITION SENSOR
| Number | Designation | Engine 274 | ||
|---|---|---|---|---|
| BA15.10-P-1003-03I | Bolt, camshaft solenoid to timing case cover | Stage 1 | Nm | 4 |
| Stage 2 | ∠° | 60 | ||
