(Marking Of Camshaft Bearing Caps - AH05.20-Z-6992-01KOA)

Engine 111

Engine 111.948/978

Engine 111.9

Engine 120

Engine 166

Engine 266.920/940/960/980

Engine 601.942/970

Engine 668.914/940/941/942

When installing camshaft bearing caps note the numbering and install camshaft bearing cap at same position again.

Engine damage can occur otherwise.

Engine 111

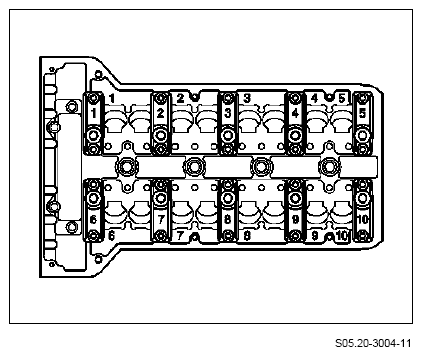

The camshaft bearings are successively numbered from 1-10, starting with the front exhaust camshaft.

The numbers are stamped into the bearing cap using number punches and cast into the cylinder head.

Courtesy of MERCEDES-BENZ USA

Engine 120

The camshaft key figures are to be read off the bearing points 3 and 10 on the right cylinder head and bearing point 17 and 24 on the left cylinder head (behind bearing caps) (arrows) and stamped onto the camshaft flange with a color (arrows).

Courtesy of MERCEDES-BENZ USA

Engine 166

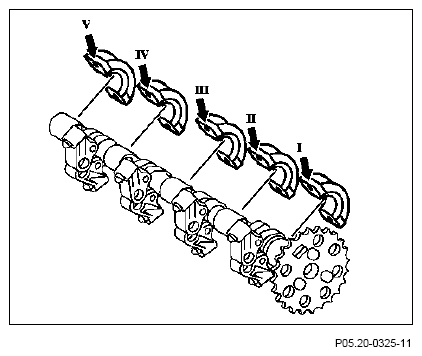

The camshaft bearing caps are consecutively numbered, starting on the front camshaft (camshaft sprocket).

The numbers are stamped into the camshaft bearing caps using number punches.

Courtesy of MERCEDES-BENZ USA

Engine 266

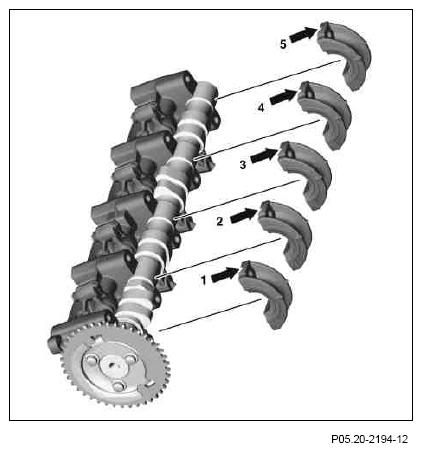

The camshaft bearing caps are successively numbered with numbers (arrows), starting on the camshaft sprocket.

Install camshaft bearing caps with numbering (arrows) facing inlet side at same position again.

Courtesy of MERCEDES-BENZ USA

Engine 601

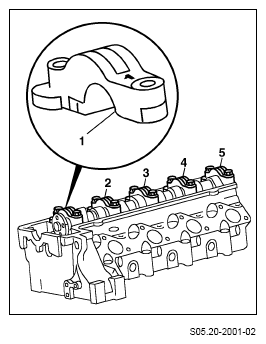

The camshaft bearings are successively numbered from 1-5, starting with the 1st cylinder.

The numbers are stamped into the bearing caps with number punches.

Courtesy of MERCEDES-BENZ USA

Engine 668

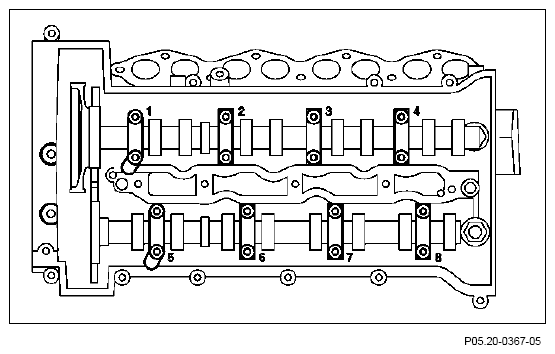

The camshaft bearing caps are numbered consecutively:

On the camshaft inlet side starting at the front with 1 to 4.

On the camshaft exhaust side starting at the front with 5 to 8.

Courtesy of MERCEDES-BENZ USA
