Remove/Install Bottom Part Of Engine Oil Pan - AR01.45-P-7555MRJ
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Engine 264 in model 253
MODIFICATION NOTES
| 18.04.2019 | Method description adapted. | Operation steps 4.2, 5 | |
| 21.06.2019 | Operation step added. | Operation step 4.1 |

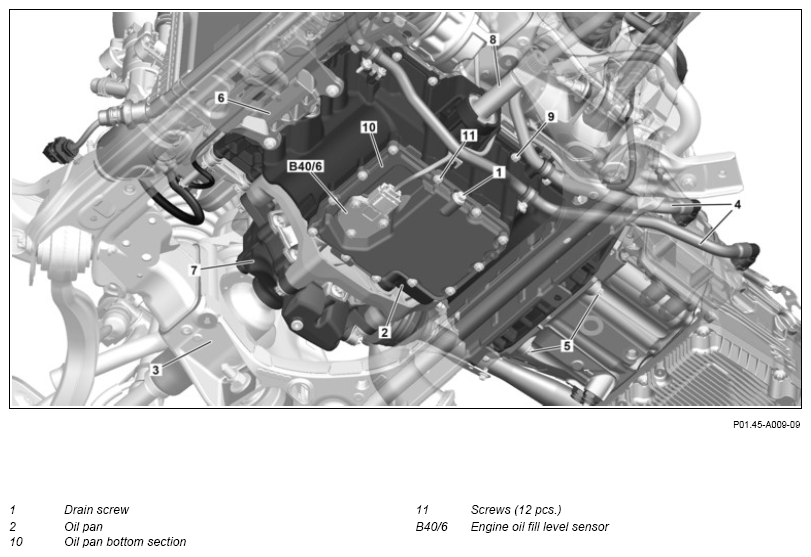

Fig 1: Bottom Part Of Engine Oil Pan Components Location - Engine 264 In Model 253 (Shown On Model 205 With Code M005)
Shown on model 205 with code M005 (4MATIC)
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on application of flange sealants to seal major assemblies | AH00.00-P-0500-01MNE | ||
| Remove/install | |||
| 1 | Remove lower Engine compartment lining. | AR61.20-P-1105LW | |
| 2 | Release and disconnect electrical connector from the Engine oil fill level sensor (B40/6). | AR18.40-P-5116MRI | |
| 3 | Remove drain screw (1) from the oil pan bottom section (10) and collect Engine oil in a suitable container. | ||
| Notice | Notes on Engine oil and filter changes | AH18.00-P-0104-01A | |
| *BF18.00-P-1001-01GA | |||
| *BA01.45-P-1002-01ZA | |||
| 4.1 | Remove screws (11) of the oil pan bottom section (10) contrary to the numerical sequence. | Engine 264 in model 253 Oil pan bottom section tightening procedure |
AR01.45-P-7500-08MRK |
| *BA01.45-P-1003-01ZA | |||
| 4.2 | Remove screws (11) of the oil pan bottom section (10). | Engine 264 in model 205 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
*BA01.45-P-1003-01ZA |
| 5 | Release oil pan bottom section (10) from oil pan (2) and remove downward. | ||
| Notes on sealant path for oil pan | AH01.45-P-0001-01MMA | ||
| 000 588 00 84 00 Heat gun | Do not drive any tools between oil pan bottom section (2) and oil pan bottom section (10) to loosen them. Otherwise, damage to the sealing surfaces can occur. |
WS54.00-P-0049B | |
| Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A | ||
| Fig 2 | |||
| 6 | Transfer Engine oil fill level sensor (B40/6). | When replacing oil pan bottom section (10). | AR18.40-P-5116MRI |
| Clean | |||
| 7 | Clean sealing surfaces on oil pan (2) and oil pan bottom section (10). | Sealing surfaces will otherwise be damaged. |
AR01.00-P-0050-01A |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check and correct Engine oil level. | ||
| AP18.00-P-1812MKI | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness. |
OIL PAN
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.45-P-1002-01ZA | Drain screw to oil pan | Nm | 40 |
OIL PAN
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA01.45-P-1003-01ZA | Screw/bolt, oil pan bottom section to oil pan top section | Nm | 9 |
ENGINE LUBRICATION
| Number | Designation | Engine 264 in model 205, 213, 238, 257 with code M005 (Vehicles with 4MATIC/all-wheel drive) | Engine 264 in model 253 | ||
|---|---|---|---|---|---|
| BF18.00-P-1001-01GA | Engine oil | Oil filling capacity with oil filter | L | 6 | 6 |
| Specification | BB00.40-P-0223-02A | BB00.40-P-0223-02A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
