Engine Oil Pan Bottom Section Tightening Procedure - AR01.45-P-7500-08MRK

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264 in model 167, 253

OIL PAN

Number Designation Engine 264
BA01.45-P-1003-01ZA Screw/bolt, oil pan bottom section to oil pan top section Nm 9

Shown on model 253

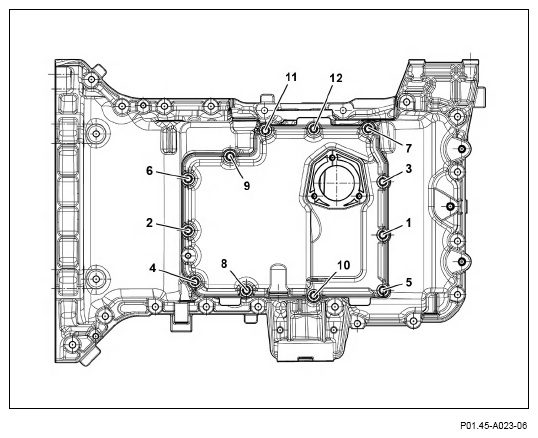

Fig 1: Engine Oil Pan Bottom Section Tightening Sequence - Engine 264 In Model 253
G14470571Courtesy of MERCEDES-BENZ USA
  1. Tighten screws (1 to 12) in ascending numerical order TORQUE SPECIFICATION .

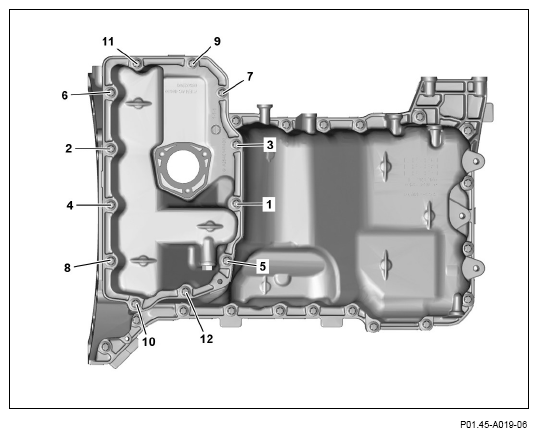

Shown on model 167

G14470572Courtesy of MERCEDES-BENZ USA
