Remove/Install Front Fenders - AR88.10-P-1000LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213, 238

Model 253, 293

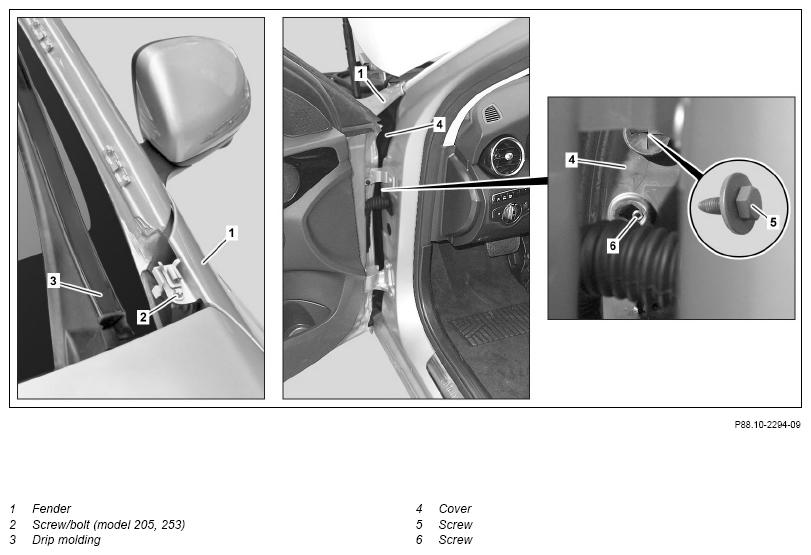

G14173022Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle on model 205.0

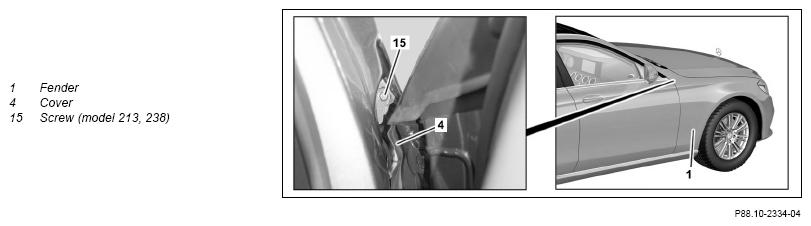

Shown on model 213.0 on right side of vehicle

Fig 1: Front Fenders Components Location - Model 253 (Shown On Model 213.0)
G14173023Courtesy of MERCEDES-BENZ USA

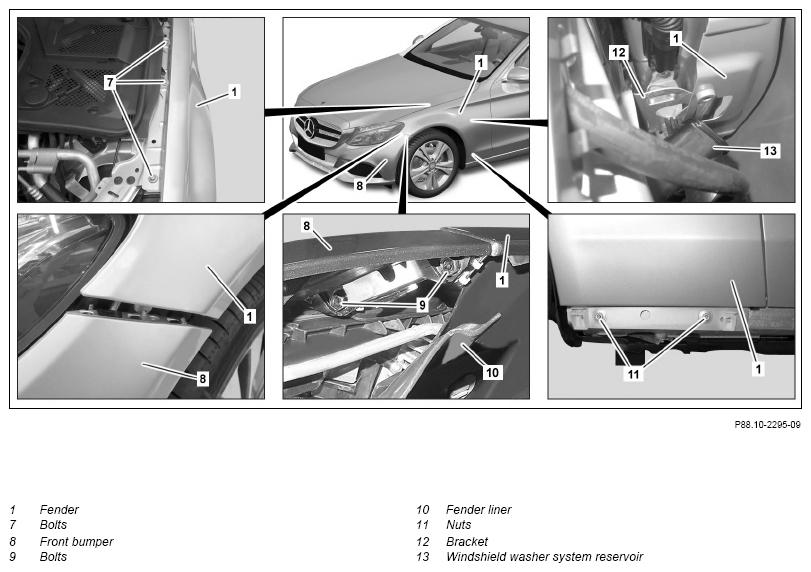

G14173024Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle on model 205.0

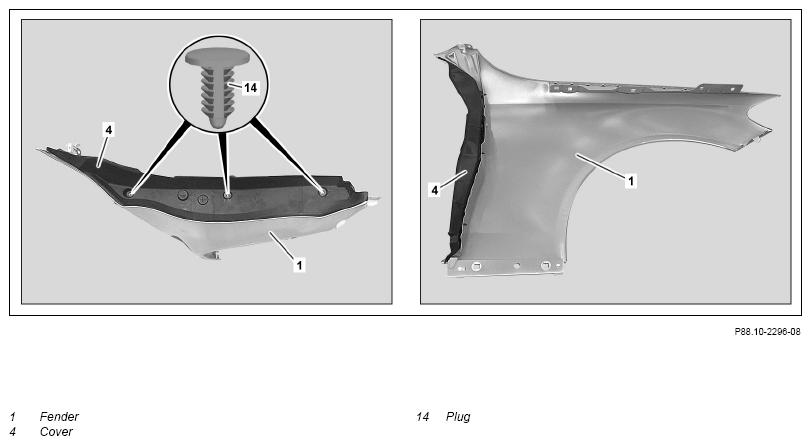

G14173025Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

WARNING Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
REMOVINGINSTALLING Remove/install
1 Unclip wheel arch liner from front bumper (8) Model 253
Model 293		 AR88.80-P-0005LWG
    Model 213.2 with code M035 (All road version) AR88.80-P-0005LWT
    When replacing fender (1)
↓
Install new wheel arch liner.
2 Remove longitudinal member panel Model 205 AR88.80-P-6000LW
    Model 213 AR88.80-P-6000LWE
    Model 253
Model 293		 AR88.80-P-6000LWG
    Model 238
IMPORTANTInstallation:  Reinstall longitudinal member paneling only after adjusting fender (1).		 AR88.80-P-6000LWO
3 Remove screw (5) IMPORTANT Front door not completely open.
IMPORTANTInstallation:  Screw in bolt (5) only to stop.
It is screwed in after adjusting fender (1).
4 Remove bolt (6) When removing left fender (1).
IMPORTANT Front door not completely open.
IMPORTANTInstallation:  Screw in screw (6) only until i makes contact. It is screwed in after adjusting fender (1).
5.1 Detach drip rail (3) in area of fender (1) Model 205, 213, 238
5.2 Remove drip rail (3) Model 253, 293 AR88.80-P-4000LW
6.1 Unscrew bolt (2) Model 205, 253, 293
IMPORTANTInstallation:  Screw in screw (2) only up to end stop. It is screwed in after adjusting fender (1).
6.2 Remove screw (15) Model 213, 238
IMPORTANT Front door not completely open. Bolt (15) is located behind cover (4).
IMPORTANTInstallation:  Screw in screw (15) only up to end stop. It is screwed in after adjusting fender (1).
7 Detach fender liner (10) until bolts (9) are accessible Model 205, 253
Model 293		 AR88.10-P-1300LW
    Model 213, 238 AR88.10-P-1300LWE
8 Remove screw/bolts (9)
9 Unscrew nuts (11) IMPORTANTInstallation:  Unscrew nuts (11) only until end stop. They are tightened after adjusting fender (1).
10 Remove screws (7) IMPORTANTInstallation:  Screw in nuts (7) only to stop They are tightened after adjusting fender (1).
11 Mask front door, A-pillar and front bumper (8) in area of fender (1) with suitable felt strips Felt strip *BR00.45-Z-1150-02A
12 Move fender (1) out from behind front bumper (8) together with shackle
13 Unhook fender (1) at bottom from threaded pins on nuts (11)
14.1 Push fender (1) toward rear against brackets (12) and remove to side When removing left fender (1).
IMPORTANTInstallation:  Insert fender (1) between bracket (12) and windshield washer system reservoir (13).
14.2 Remove fender (1) to side When removing right fender (1).
15 Remove plug (14) and remove cover (4) from fender (1) When replacing to (1).
    SPECIAL TOOL Clip remover Fig 3
16 Install in the reverse order
  Adjust
17 Adjust fender (1), tighten screws (5, 6, 7) and nuts (11) Model 205, 253
Model 293		 AR60.00-P-0700-01LW
    Model 213 AR60.00-P-0700-01LWE
    Model 238
IMPORTANTInstallation:  Repair paint damage in area of screws (5, 6, 7) and nuts (11).		 AR60.00-P-0700-01LWO
    Model 293 Front door to fender *BE60.00-P-1008-01OA
    Model 293 Engine hood to fender *BE60.00-P-1001-01OA
    Model 205 Engine hood to fender *BE60.00-P-1001-01BB
    Model 213 Engine hood to fender *BE60.00-P-1001-01GA
    Model 238 Engine hood to fender *BE60.00-P-1001-01HA
    Model 253 Engine hood to fender *BE60.00-P-1001-01FA
    Model 253 Front door to fender *BE60.00-P-1006-01FA
    Model 213 Front door to fender *BE60.00-P-1007-01GA
    Model 205 Front door to fender *BE60.00-P-1008-01BB
    Model 238 Front door to fender *BE60.00-P-1008-01HA
    Model 238 Longitudinal member trim to fender *BE60.00-P-1018-01HA
    SPECIAL TOOL Feeler gauge Fig 2
18.1 Tighten screw/bolt (2) Model 205, 253, 293
IMPORTANTInstallation:  Repair paint damage in area of bolt (2).
18.2 Tighten screw (15) Model 213, 238
IMPORTANTInstallation:  Repair paint damage in area of screw/bolt (15).
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1001-01BB Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1001-01FA Engine hood to fender Dimension "A" mm 3, 0 (±0, 5) 3, 0 (±0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1001-01GA Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
    For picture, see   AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1001-01HA Engine hood to fender Dimension "A" mm 3 (±0, 5) 3 (±0, 5)
    For picture, see   AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1001-01OA Engine hood to fender Dimension "A" mm 4 (±0, 5)
    -   -
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 253.3 Model 253.1/9
BE60.00-P-1006-01FA Front door to fender Dimension "G" mm 3, 5 (+1/-0, 5) 3, 5 (+1/-0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 213.0/1 Model 213.2
BE60.00-P-1007-01GA Front door to fender Dimension "G" mm 3, 6 (±0, 5) 3, 6 (±0, 5)
    For picture, see   AR60.00-P-0700-01LWE AR60.00-P-0700-01LWE
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.0/1 Model 205.2
BE60.00-P-1008-01BB Front door to fender Dimension "G" mm 4 (±0, 5) 4 (±0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3 Model 205.4
BE60.00-P-1008-01BB Front door to fender Dimension "G" mm 4 (±0, 5) 4 (±0, 5)
    For picture, see   AR60.00-P-0700-01LW AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1008-01HA Front door to fender Dimension "G" mm 3, 5 (±0, 5) 3, 5 (±0, 5)
    For picture, see   AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
GAP DIMENSIONS

Number Designation Model 293
BE60.00-P-1008-01OA Front door to fender Dimension "E" mm 4 (±0, 5)
    -   -
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 238.3 Model 238.4
BE60.00-P-1018-01HA Longitudinal member trim to fender Dimension "A1" mm 2 (±0, 5) 2 (±0, 5)
    For picture, see   AR60.00-P-0700-01LWO AR60.00-P-0700-01LWO
Fig 2: Identifying Feeler Gauge (129 589 03 21 00)
G11129185Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Clip Remover (452 589 01 63 00)
G11129172Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1150-02A Felt strip A 000 983 89 10
