Remove/Install Folding Drive For Sideview Mirror - AR88.70-P-9070LF
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.0/1/2, 213, 253
with code P49 (Mirror package)
Model 222
Model 293
with code P49 (Mirror package)
Shown on model 222
Shown on model 222
| Remove/install | |||
| 1 | Remove outside mirror. | Model 205.0/1/2, 213, 253 with code P49 (Mirror package) Model 293 with code P49 (Mirror package) |
AR88.70-P-9000LW |
| Model 222 except code Z07 (Top protection) | AR88.70-P-9000LF | ||
| Model 222 with code Z07 (Top protection) | AR88.70-P-9000LFS | ||
| 2 | Remove trim from outside mirror. | AR88.70-P-9040LF | |
| 3 | Remove glass adjustment drive. | AR88.70-P-9060LF | |

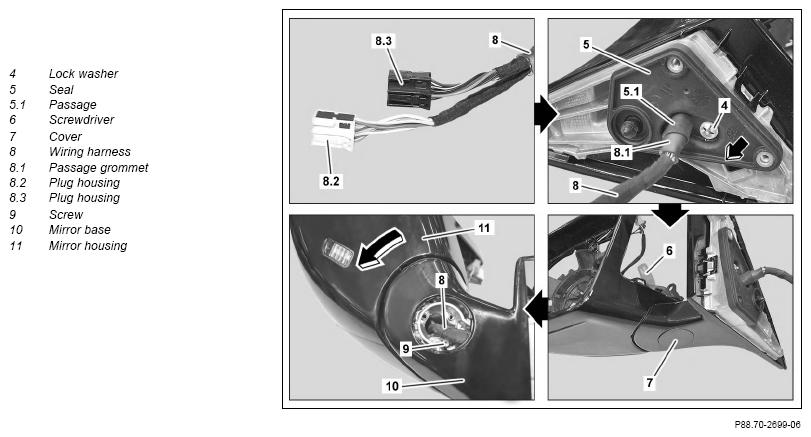

| 4 | Remove plug housing (8.3) and plug housing (8.2) from the wiring harness (8). | ||
| 5 | Remove retaining washer (4) and detach seal (5) from the wiring harness (8). | ||
| 6 | Unclip cover (7) with a suitable screwdriver (6) from the opposite side and remove. | ||
| 7 | Screw screw (9) into the front-most of the three bores until the mirror housing (11) visibly lifts off from the mirror base (10). | ||
| 8 | Disconnect mirror housing (11) from the mirror base (10) by turning in the direction of the arrow. | ||
| 9 | Remove screw (9) from the bore. | ||
| 10 | Pull wiring harness (8) out of the mirror base (10). | ||

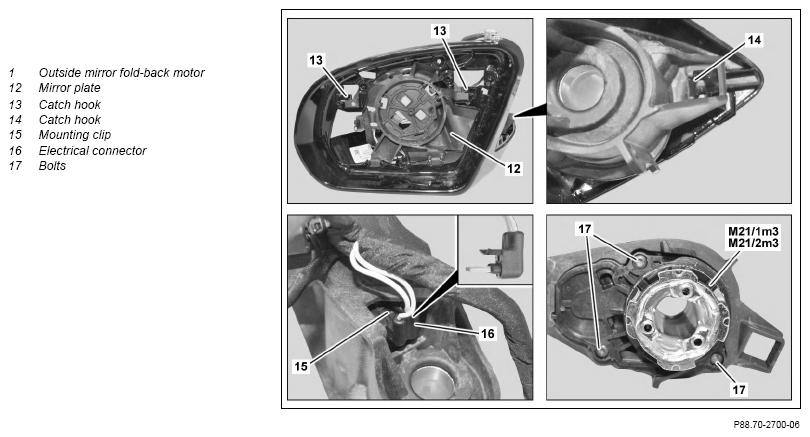

| 11 | Release catch hooks (13) and lift mirror plate (12); lift slightly. | ||
| 12 | Unlock catch hook (14) and remove mirror plate (12) from the mirror housing (11). | ||
| 13 | Release retaining clip (15) and detach electrical connector (16) from outside mirror fold-back motor (1). | ||
| 14 | Remove screws (17). | ||
| 15 | Remove outside mirror fold-back motor (1). | ||
| 16 | Install in the reverse order |
