Retrofit Trim Piece On Side Of Body - AZ88.85-P-0100LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 (except 253.364/964)

except code 772 (AMG styling - Front spoiler, side skirts)

except code 773 (AMG Exterior Carbon package)

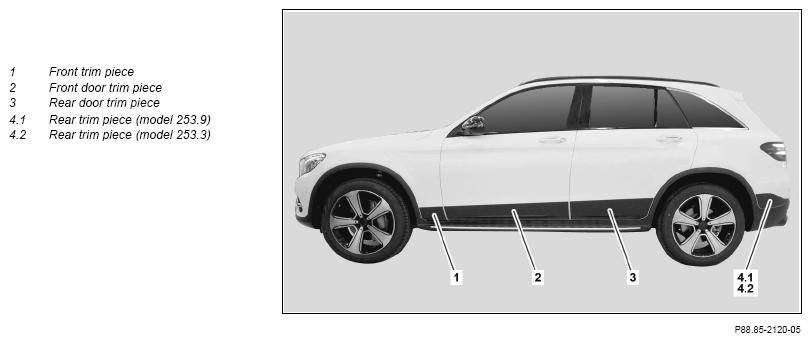

Shown on model 253.9

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Install
1	Raise vehicle
			AR00.60-P-1002LWG
2	Clean vehicle in area of front trim piece (1), front door trim piece (2), rear door trim piece (3) and rear trim piece (4.1, 4.2)	Cleaner	*BR00.45-Z-1025-04A
3	Install front trim piece (1), front door trim piece (2), rear door trim piece (3) and rear trim piece (4.1, 4.2)		AZ88.85-P-0100-01LWG

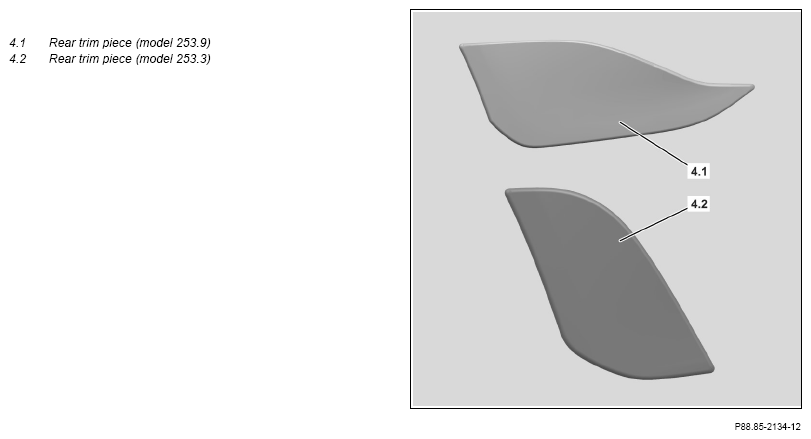

		When pressing on, ensure that the pressure is applied directly on the adhesive tape. Otherwise there may be adhesion problems. On model 253.9 and 253.3 different rear trim pieces (4.1, 4.2) are installed. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 h.
4	Lower vehicle
			AR00.60-P-1002LWG
	Update Vehicle Documentation (VeDoc)
5	Attach note "Trim piece on body retrofitted according to AZ88.85-P-0100LWG" under field organization texts to design group (KG) 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Parts kit for side trim piece on body	1
