Retrofit Rear Spoiler On Trunk Lid - AZ88.50-P-0005LWX
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253.3 (except 253.364)
except code 772 (AMG styling - Front spoiler, side skirts)
except code 773 (AMG Exterior Carbon package)
except code 830 (China version)
| Install | |||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |

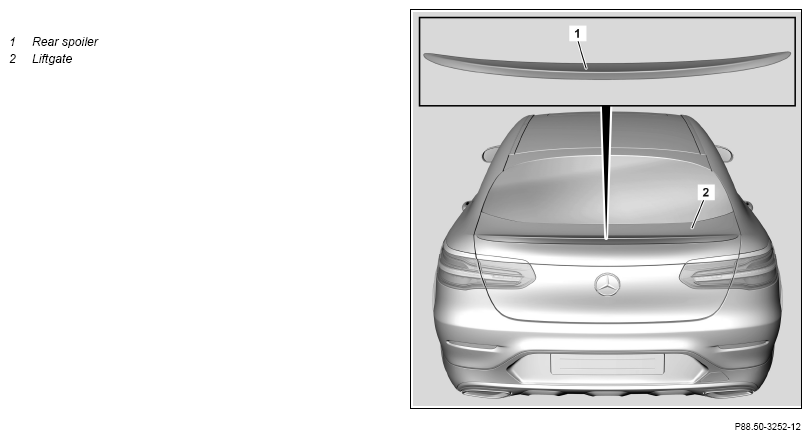

| 1 | Paint rear spoiler (1) | AZ88.50-P-0005-01LWX | |
| 2 | Install rear spoiler (1) | AZ88.50-P-0005-02LWX | |
When pressing on, press directly on bonding surface on rear spoiler (1). The maximum adhesive force is reached after approx. 72 hours at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, carwash) or any mechanical stress during first 24 hours. Otherwise adhesion problems may occur. |
|||
| Update Vehicle Documentation (VeDoc) | Cleaner | *BR00.45-Z-1025-04A | |
| 3 | Attach note "Rear spoiler retrofitted according to AZ88.50-P-0005LWX" under field organization text to KG 88 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Rear spoiler parts kit | 1 |
