Install Rear Spoiler On Trunk Lid - AZ88.50-P-0005-02LWX

Model 253.3

Helper required to assemble rear spoiler (1).

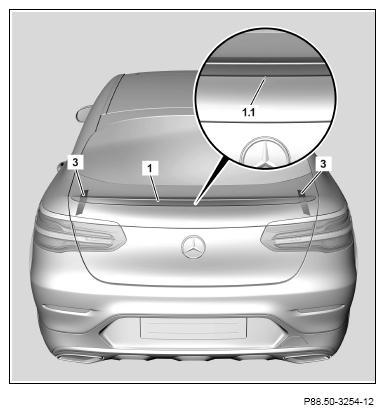

1. Position rear spoiler (1) on liftgate (2) and mark position with adhesive tapes (3).

   Ensure that the distance between the roof spoiler (1) and the outer sides of the liftgate is uniform. A marking (1.1) is present in the center lower area of the spoiler (1) as additional orientation aid. It should be in the correct installation position flush with the upper tip of the Mercedes star.

2. Cut adhesive tapes (3) in gap between rear spoiler (1) and liftgate (2) with suitable tool.

   When cutting adhesive tapes (3), ensure that the surfaces on the rear spoiler (1) and liftgate (2) are not damaged.

   Otherwise this could lead to visual impairment of the component surfaces or corrosion on the liftgate (2).

3. Remove rear spoiler (1) again and clean liftgate (2) in bonding area.

   The area of the liftgate (2) to be bonded must be free of dust and grease.

   Courtesy of MERCEDES-BENZ USA

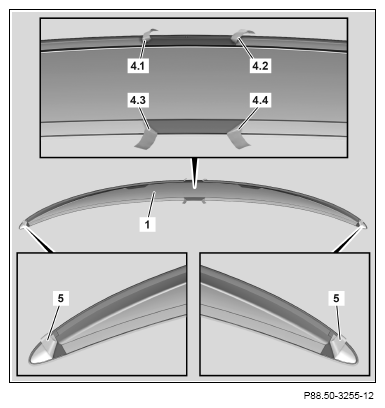

4. Slightly remove protective foils (5) from side adhesive strips on front spoiler (1) at ends and bend 45° in direction of outer edge of rear spoiler.
5. If necessary, fix bent protective foils (5) in place on outside of rear spoiler (1) with adhesive tape.
6. Slightly remove protective foils (4.1, 4.2, 4.3, 4.4) from remaining adhesive strips at center of rear spoiler (1) at ends and bend 45° in direction of outer edge of rear spoiler (1).
7. Fix protective foils (4.1, 4.2, 4.3, 4.4) in place with adhesive tape at outside of rear spoiler (1).

   Courtesy of MERCEDES-BENZ USA

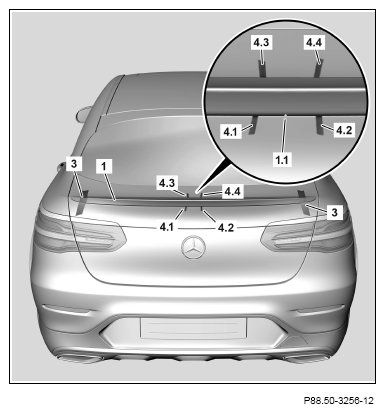

8. Carefully lay rear spoiler (1) down on liftgate (2), align according to previously attached adhesive strips (3) and press on direction of travel.
9. Remove protective foil (4.1) in increments of approx 150 mm.

   Remove protective foil (4.1) at an angle of 90° vertically downward. In the meantime it is necessary to press on the rear spoiler (1) repeatedly.

10. Remove protective foil (4.2) in increments of approx 150 mm.

    Remove protective foil (4.2) at an angle of 90° vertically downward. In the meantime it is necessary to press on the rear spoiler (1) repeatedly.

    Courtesy of MERCEDES-BENZ USA

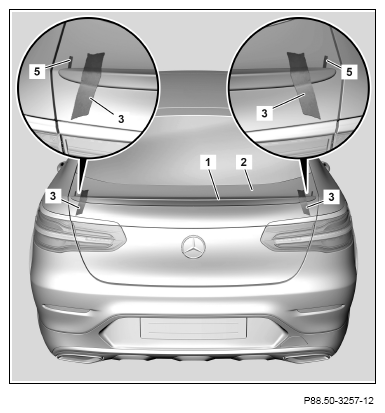

11. Completely remove protective foils (5) and slightly press on rear spoiler (1).

    Courtesy of MERCEDES-BENZ USA

12. Completely remove protective foil (4.3) and slightly press on rear spoiler (1).
13. Completely remove protective foil (4.4) and slightly press on rear spoiler (1).
14. Press rear spoiler (1) onto liftgate (2) with clean cotton rag starting at center.

    When pressing on, press directly on bonding surface on rear spoiler (1). The maximum adhesive force is reached after approx. 72 hours at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, carwash) or any mechanical stress during first 24 hours. Otherwise adhesion problems may occur.

15. Remove adhesive tapes (3).

    Courtesy of MERCEDES-BENZ USA
