(Retrofit Front Bumper Trim Piece - AZ88.20-P-0050LWG)
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 (except 253.364/964) up to 5/31/19 except code 772 (AMG styling - Front spoiler, side skirts)
| Install | |||
| 1 | Raise vehicle | ||
| AR00.60-P-1002LWG | |||

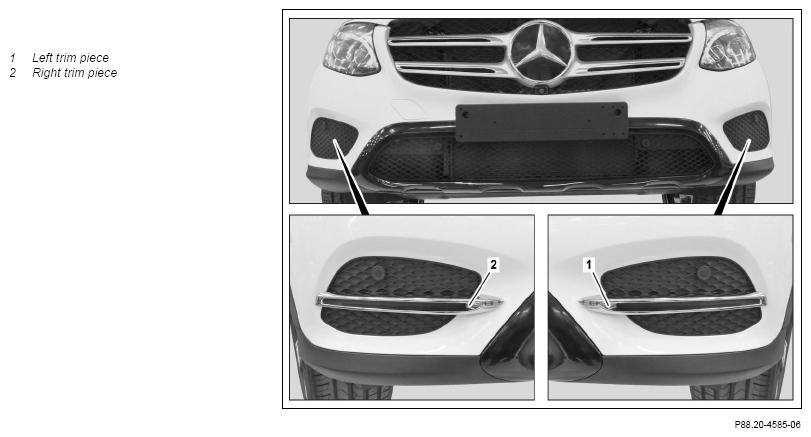

| 2 | Install left trim piece (1) and right trim piece (2 on front bumper | AZ88.20-P-0050-01LWG | |
| Cleaner | *BR00.45-Z-1025-04A | ||
| 3 | Lower vehicle | ||
| AR00.60-P-1002LWG | |||
| Update Vehicle Documentation (VeDoc) | |||
| 6 | Attach note "Bumper trim piece retrofitted according to AZ88.20-P-0050LWG" field organization texts for design group 88 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Parts kit for front bumper trim piece | 1 |
