(Retrofit Front Bumper Trim Piece - AZ88.20-P-0050-01LWG)
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253 up to 5/31/19
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
The following operation steps are shown on the left side of the vehicle and can be accomplished analogously on the right side of the vehicle.
- Clean front bumper in area of carrier (3) to be installed.

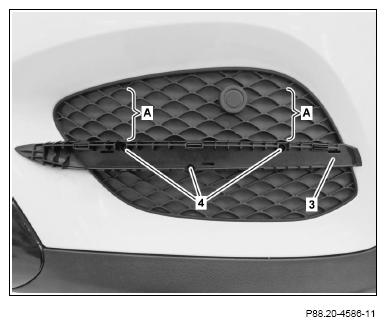

- Align carrier (3) at front bumper.
Align carrier (3) so that three complete honeycombs (A) can be seen above the two upper self-tapping screws (4).
- Tighten carrier (3) on front bumper with self-tapping screws (4).
The self-tapping screws (4) are included in the parts kit.

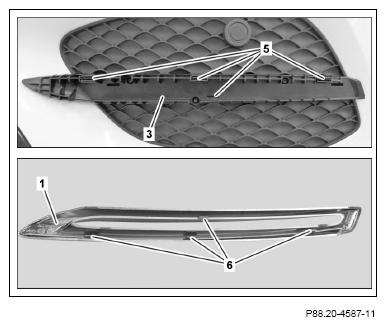

- Position trim piece (1) on carrier (3).

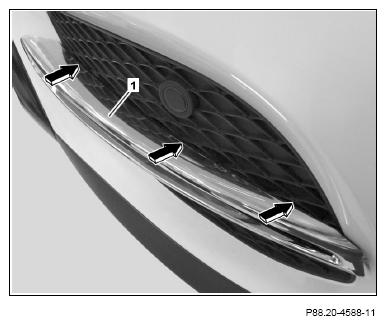

- Clip in trim piece (1) into carrier in direction of arrow and firmly press on.
