Assembly And Covering Work When Painting The Liftgate - Ar98.00-P-2011LWS
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205.2, 213.2, 253
Model 293
MODIFICATION NOTES
| 06.07.2018 | Detailed description of the work procedure. |

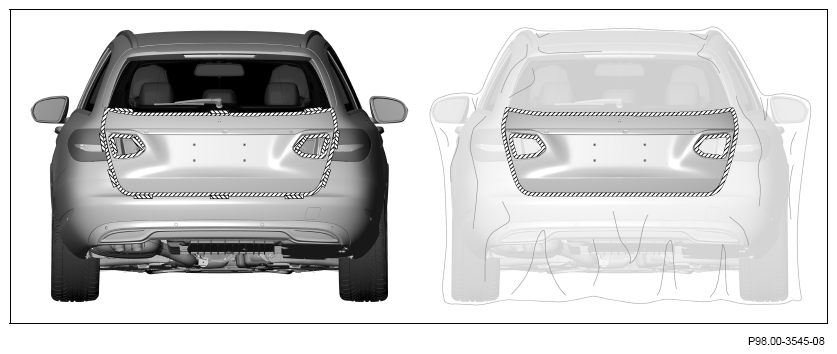

Shown on model 205.2 in paint stage 2/3
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| General information on masking for paintwork | AH98.00-P-0200-01BK . | ||
| Covering and masking off in paint stage 2 or 3 | |||
| 1 | Remove Mercedes star completely. | Model 205.2, 213.2, 253, 293 | |
| Model 253.3 | AR72.20-P-2559LWX . | ||
| Fig 1. | |||
| 2 | Remove model badges from liftgate. | If installed. | |
| 3 | Remove rear spoiler from liftgate. | If installed. | |
| 4 | Remove trim strips from liftgate. | If installed. |
|
| 5 | Remove outer handle from liftgate. | Model 205.2, 213.2, 253, 293 | |
| Model 205.2, 213.2, 253.1/9 | AR72.20-P-7320LW . | ||
| 6 | Remove license plate lamps. | Model 205.2, 213.2, 253, 293 | |
| Model 205.2, 213.2, 253.1/9 | AR82.10-P-5161LWS . | ||
| 7 | Remove lamp units from liftgate. | Model 205.2, 213.2, 253, 293 | |
| Model 205.2 | AR82.10-P-4926LW | ||
| Model 213.2 | AR82.10-P-4926LWT | ||
| Model 253 | AR82.10-P-4926LWG . | ||
| 8 | Remove rear window. | Model 205.2, 213.2, 253, 293 Paint stage 3, if damaged point is in area of rear window. |
|
| Model 205.2, 213.2, 253 | AR67.20-P-5145LW . | ||
| 9 | Mask off all openings at liftgate using masking tape. | ||
| 10 | Mask off liftgate all the way round. | ||
| 11 | Cover areas of vehicle that are not to be painted using film. |
