Checking Follower Joint Of Steering Knuckle Mount (Installed) - AR33.20-P-0426LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205, 213, 238, 253, 293, 295, 297

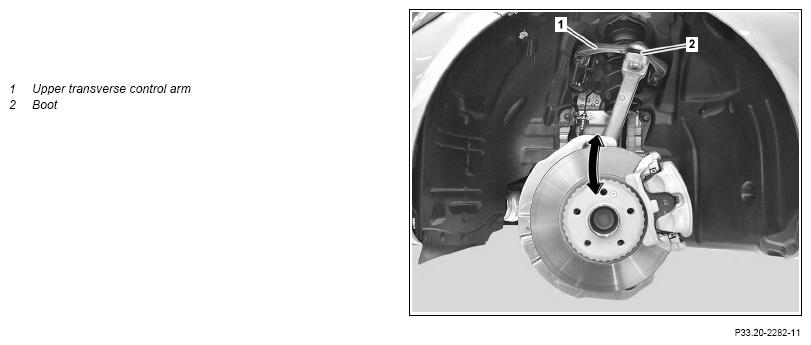

Shown on model 205 on left side of vehicle with front wheel removed
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Check | |||
| 1 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| 2 | Check boot (2) of upper ball joint for cracks and damage. | If there is a problem, ↓ Replace upper transverse control arm (1). |
|
| Model 295, 297 | AR33.20-P-0500EQS | ||
| Model 293 | AR33.20-P-0500EQ | ||
| Model 205, 213, 253 | AR33.20-P-0500LW | ||
| Model 238 | AR33.20-P-0500LWO | ||
| 3 | Check play in upper ball joint by firmly pulling and pushing on front wheel while simultaneously feeling upper ball joint. | If there is a problem, ↓ Replace upper transverse control arm (1). |
|
| Model 295, 297 | AR33.20-P-0500EQS | ||
| Model 293 | AR33.20-P-0500EQ | ||
| Model 205, 213, 253 | AR33.20-P-0500LW | ||
| Model 238 | AR33.20-P-0500LWO | ||
| 4 | Lower vehicle. | AR00.60-P-1006A |
