Remove/Install Front Upper Control Arm - AR33.20-P-0500LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 253

Shown on model 205 except code 489 (AIRmatic), on the left side of vehicle

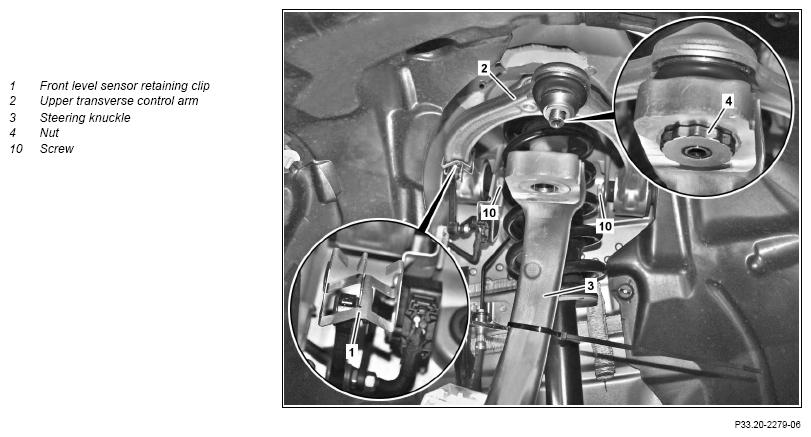

Fig 1: Front Upper Control Arm Components Location - Model 253 (Shown On Model 205)
G14546961Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code 489 (AIRmatic)

G14546962Courtesy of MERCEDES-BENZ USA
G14546963Courtesy of MERCEDES-BENZ USA
Notice Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
Notice Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
Notice Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
Notice Notes on self-locking nuts and bolts   AH00.00-P-0001-01KOA
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Perform power disconnect of high-voltage on-board electrical system. Model 205.012/047/147/212/247 AR54.10-P-1150LW
    Model 253.354/954 AR54.10-P-1150LVH
2 Disconnect ground line and positive line of on-board electrical system battery. Model 205 (except 205.012/047/147/212/247), 213, 253
When removing the upper transverse control arm (2) on the front passenger side.

      AR54.10-P-0005LW

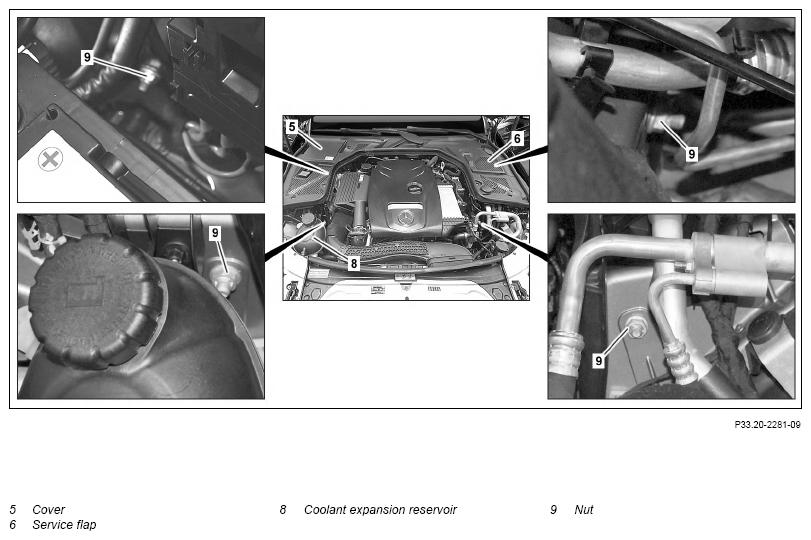

3 Remove cover (5) or service flap (6).
4 Unclip coolant expansion reservoir (8). When removing right upper transverse control arm (2).

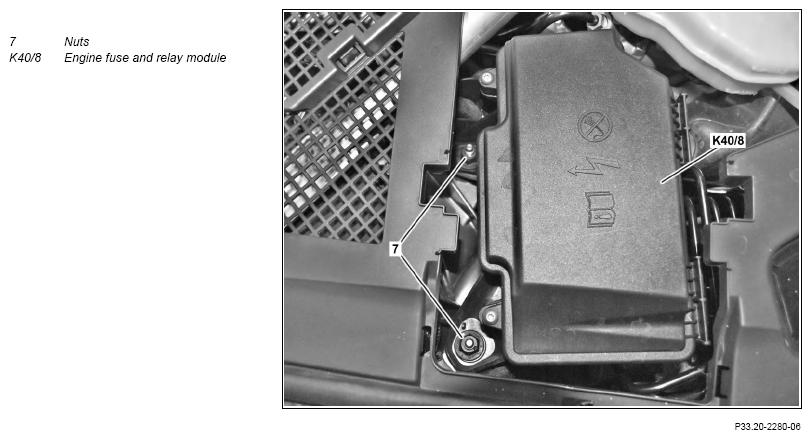

5 Unscrew nuts (7) and remove motor fuse and relay module (K40/8) and place to one side with connected lines. When removing the upper transverse control arm (2) on the driver's side.
6 Remove left or right front wheel.   AR40.10-P-1102A
7 Remove left or right front suspension strut. Model 205 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
Model 213 with code 489 (AIRMATIC Dual Control/semi-active air suspension)
Model 253 with code 489 (AIR BODY CONTROL)
AR32.25-P-1017LWL
8 Remove front level sensor retaining clamp (1) from upper transverse control arm (2). If installed.
IMPORTANT Pay attention to installation position.

9 Unscrew nut (4). NOTES Counterhold the ball head and do not use an impact wrench/driver.
Otherwise the ball head or steering knuckle (3) may be damaged.

    TORQUE SPECIFICATION Nut, steering knuckle to transverse control arm *BA33.20-P-1006-01U
10 Remove upper transverse control arm (2) from steering knuckle (3).
11 Secure steering knuckle (3) with a cable tie.
12 Unscrew nuts (9) from screws (10). TORQUE SPECIFICATION Nut, transverse control arm to body *BA33.20-P-1005-01U
13 Remove bolts (10).
14 Remove upper transverse control arm (2).
INSPECT Check
15 Check elastomer bearings at upper transverse control arm (2) for wear and damage. If problems occur,
↓
Replace upper transverse control arm (2).

16 Check upper ball joint at upper transverse control arm (2) for wear and damage. If problems occur,
↓
Replace upper transverse control arm (2).

17 Check upper transverse control arm (2) for damage. If problems occur,
↓
Replace upper transverse control arm (2).

18 Install in the reverse order
WHEEL CONTROL, HUB

Number Designation Model 205 Model 213
BA33.20-P-1005-01U Nut, transverse control arm to body Stage 1 Nm 35 35
Stage 2 ∠° 90 90
WHEEL CONTROL, HUB

Number Designation Model 253
BA33.20-P-1005-01U Nut, transverse control arm to body Stage 1 Nm 35
Stage 2 ∠° 90
WHEEL CONTROL, HUB

Number Designation Model 205 Model 213
BA33.20-P-1006-01U Nut, steering knuckle to transverse control arm Stage 1 Nm 50 50
Stage 2 ∠° 45 45
WHEEL CONTROL, HUB

Number Designation Model 253
BA33.20-P-1006-01U Nut, steering knuckle to transverse control arm Stage 1 Nm 50
Stage 2 ∠° 45
