Retrofit Luggage Net For Passenger-Side Footwell - AZ68.50-P-0007LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253
as of model year 2021
| Work preparation | |||
| 1 | Produce drilling template for luggage net brackets (S). | AZ68.50-P-0007-01EW | |

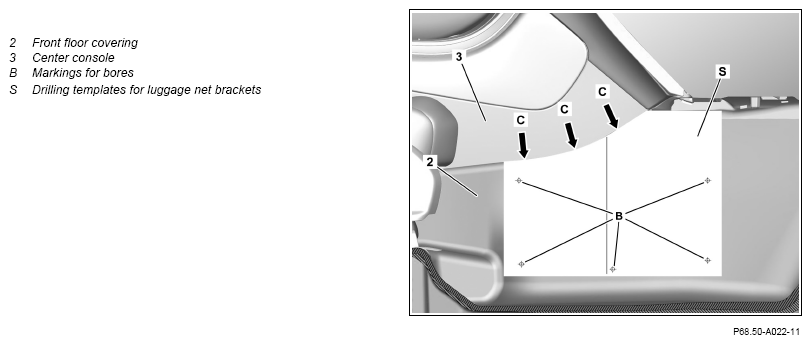

| 2 | Place drilling template for luggage net brackets (S) in position against front floor covering (2) at front passenger side. | In the case of a right-hand drive vehicle, the drilling template for the luggage net brackets (S) must be positioned mirror-inverted. |
|
| 3 | Transfer markings for bores (B) to front floor covering (2) using a suitable pen. | ||
| Remove | |||

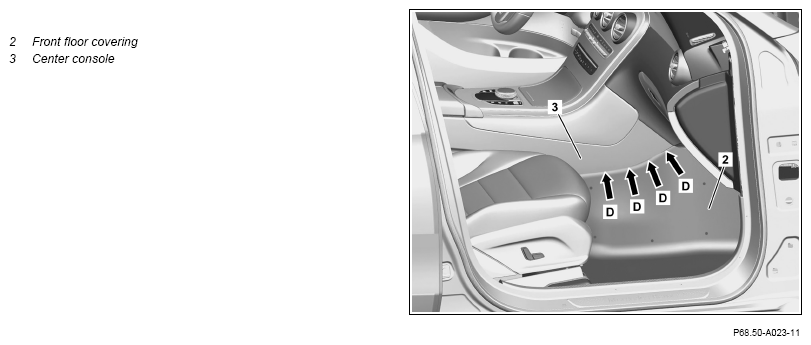

| 4 | Release front floor covering (2) at front passenger side in area of center console (3) (arrows D). | ||
| Model 253.### 1# (left-hand drive vehicle) | AR68.20-P-2070LW | ||
| Model 253.### 2# (right-hand drive vehicle) |
AR68.20-P-2050LW | ||
| Install | |||
| 5 | Retrofit luggage net (1) with brackets. | AZ68.50-P-0007-02EW | |

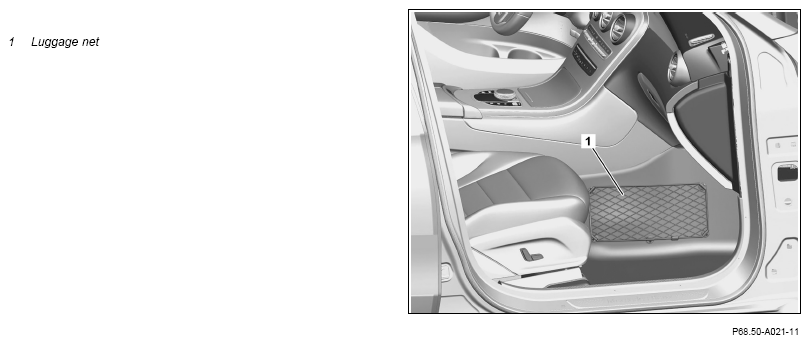

| Fig 1 | |||
| 6 | Install remaining parts. | ||
| Document retrofitted equipment using vehicle documentation (VeDoc) | |||
| 7 | Attach note "Front-passenger side footwell luggage net retrofitted as per AZ68.50-P-0007LWG" under field organization texts to DG 68. |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 (see EPC) | Parts kit front-passenger side footwell luggage net | 1 |
