Fabricate Drilling Template For Luggage Net Holder - AZ68.50-P-0007-01EW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 213, 238, 253, 257, 293

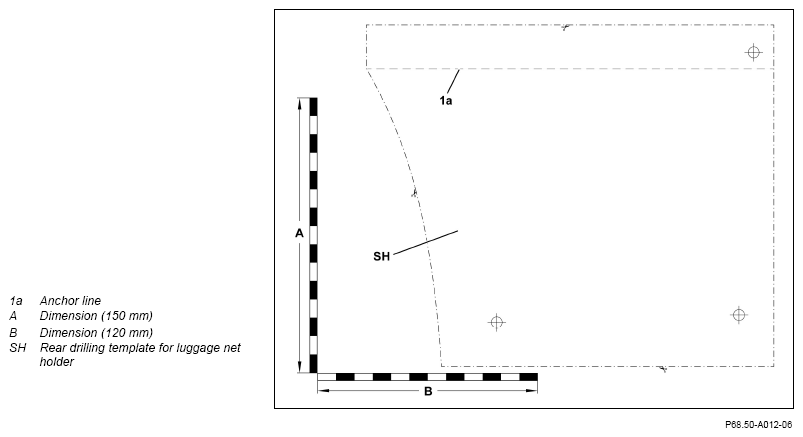

- Print out drawing of rear drilling template for luggage net holder (SH).
- Determine dimensions (A, B) of print-out.
- Determine scaling factor.
Divide dimension specified (A) by dimension determined (A).
Divide dimension specified (B) by dimension determined (B).
- Copy printed-out rear drilling template for luggage net holder (SH) to original size using determined scaling factor.
- Check dimension (A) and dimension (B) of copy.
- Cut out rear drilling template for luggage net holder (SH).
Fabricate rear drilling template for luggage net holder (SH)

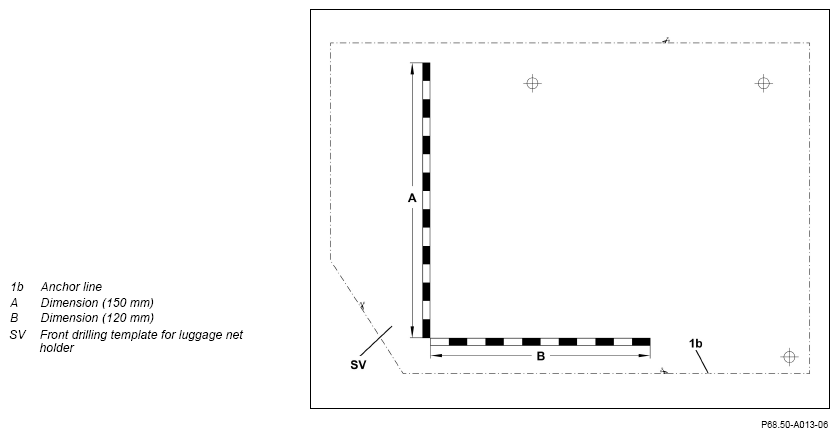

- Print out drawing of front drilling template for luggage net holder (SV).
- Determine dimensions (A, B) of print-out.
- Determine scaling factor.
Divide dimension specified (B) by dimension determined (B).
- Copy printed-out front drilling template for luggage net holder (SV) to original size using determined scaling factor.
- Check dimension (A) and dimension (B) of copy.
- Cut out front drilling template for luggage net holder (SV).
Front drilling template for luggage net holder (SV)

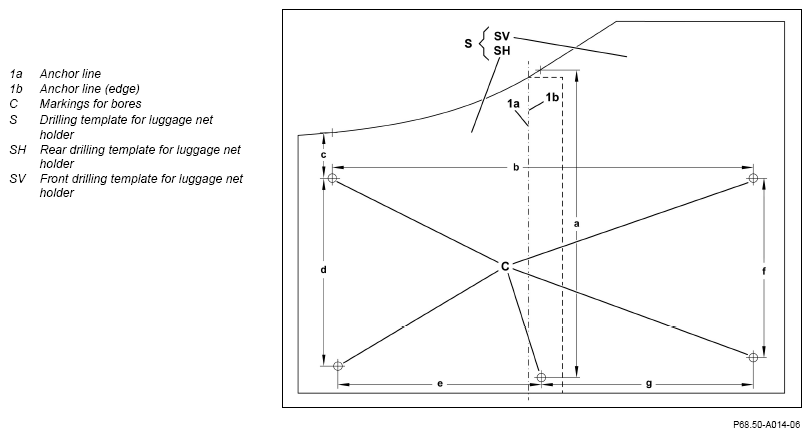

Join drilling templates together
- Align rear drilling template for luggage net holder (SH) and front drilling template for luggage net holder (SV) with anchor lines (1a, 1b).
- Fix rear drilling template for luggage net holder (SH) and front drilling template for luggage net holder (SV) in place with adhesive tape.
- Check dimensions.
Dimension "b" = 296 mm
Dimension "c" = 32 mm
Dimension "d" = 132 mm
Dimension "e" = 143 mm
Dimension "f" = 126 mm
Dimension "g" = 149 mm
- Pierce markings for bores (C) in center on created drilling template for luggage net holder (S) with suitable tool.
