Tighten Bolts On Heat Exchanger - AR18.30-P-6841-01MRH

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Engine 264

OIL COOLING

Number	Designation			Engine 264
BA18.30-P-1001-01P	Bolt, oil cooler to timing case	Stage 1	Nm	10
BA18.30-P-1001-01P	Bolt, oil cooler to timing case	Stage 2	Nm	10

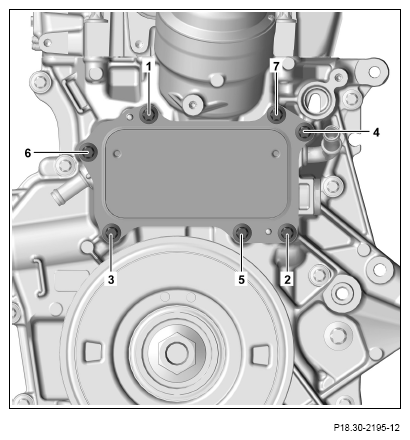

Tighten screws/bolts (1 to 7) in ascending numerical sequence to stage 1 .
Tighten screws/bolts (1 to 7) in ascending numerical sequence to stage 2 .

Courtesy of MERCEDES-BENZ USA
