Remove/Install Windshield Defroster Vent Flap Actuator Motor - AR83.30-P-2006LW

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

with code 581 (Automatic air conditioning)

Model 253

with code 581 (Automatic air conditioning)

Model 293

with code 581 (Automatic air conditioning)

Shown on model 205

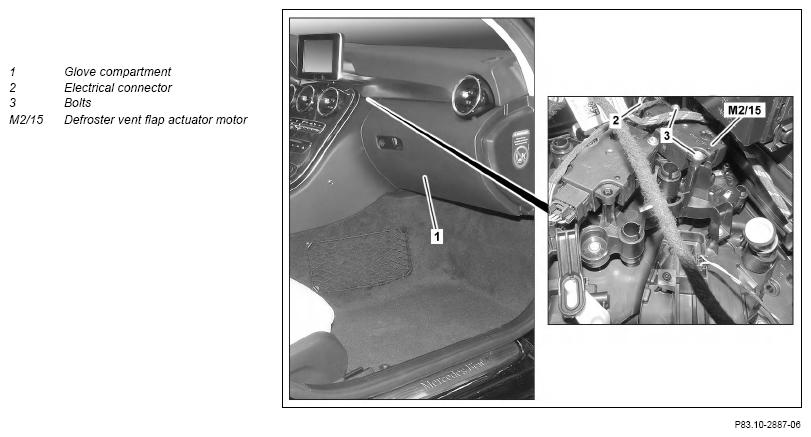

Fig 1: Windshield Defroster Vent Flap Actuator Motor Components Location - Model 253 With Code 581 (Shown On Model 205)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove glove compartment housing (1).		AR68.10-P-1400LW
2	Disconnect electrical connection (2).
3	Remove screws (3) and remove defroster flap actuator motor (M2/15).
4	Install in the reverse order.
5	Connect diagnostic system, teach in and normalize defroster flap actuator motor (M2/15) and read out fault memory.	Model 205 with code 581 (Automatic air conditioning) Model 253 with code 581 (Automatic air conditioning)	AD00.00-P-2000-04B
		Model 293 with code 581 (Automatic air conditioning) Menu point: Adaptations → Teach-in processes → Teach-in of actuator motors → Normalizing of positioning motors	AD00.00-P-2000-06FR
