Remove/Install Rear Blend Air Flap Actuator Motor - AR83.60-P-3130LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
with code 581 (Automatic air conditioning)
Model 213
with code 581 (Automatic air conditioning)
Model 253
with code 581 (Automatic air conditioning)
Model 293
with code 581 (Automatic air conditioning)
Shown on model 205

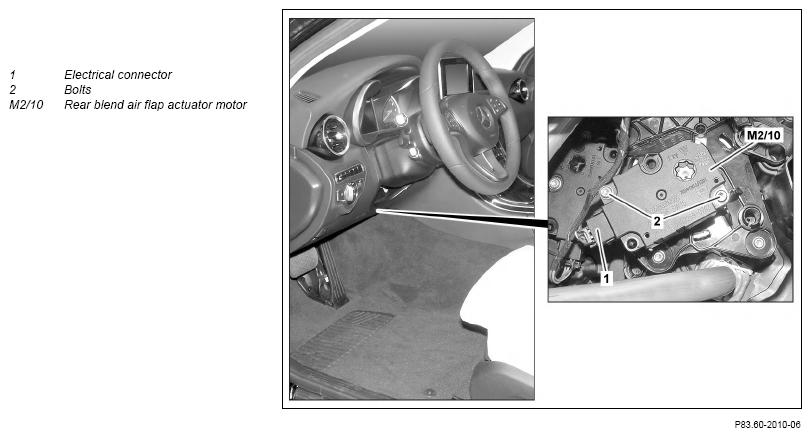

Fig 1: Rear Blend Air Flap Actuator Motor Components Location - Model 253 With Code 581 (Shown On Model 205)
| Remove/install | |||
| 1.1 | Remove glove compartment. | Model 205.### 2#, 213.### 2#, 253.### 2#, 293.### 2# with code 581 (Automatic air conditioning) Model 213.### 2# with code 581 (Automatic air conditioning) | AR68.10-P-1402LWE |
| Model 205.### 2#, 253.### 2#, 293.### 2# with code 581 (Automatic air conditioning) | AR68.10-P-1400LW | ||
| 1.2 | Remove trim under driver's side instrument panel. | Model 205.### 1#, 213.### 1#, 253.### 1#, 293.### 1# with code 581 (Automatic air conditioning) Model 205.### 1#, 253.### 1# with code 581 (Automatic air conditioning) | AR68.10-P-1500LW |
| Model 213.### 1# with code 581 (Automatic air conditioning) | AR68.10-P-1501LWE | ||
| Model 293.### 1# with code 581 (Automatic air conditioning) | AR68.10-P-1501EQ | ||
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew screws (2) and remove rear air mixing flap actuator motor (M2/10). | ||
| 4 | Install in the reverse order. | ||
| 5 |
Connect diagnostic system, teach-in and normalize rear passenger compartment air mixing flap actuator motor (M2/10), and clear fault memory. | Model 205 with code 581 (Automatic air conditioning) Model 213 with code 581 (Automatic air conditioning) Model 253 with code 581 (Automatic air conditioning) | AD00.00-P-2000-04B |
| Model 293 with code 581 (Automatic air conditioning) | AD00.00-P-2000-06FR | ||
