Remove/Install Perfume Generator - AR83.40-P-0200LWG
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 253
with code P21 (Air quality package)
| Remove/install | |||

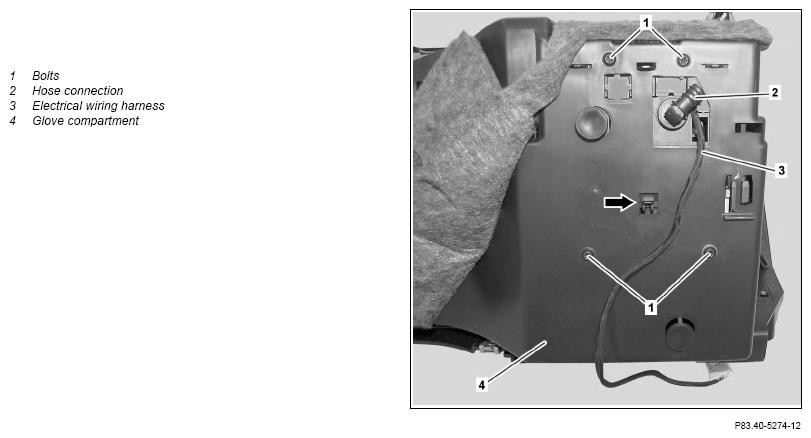

| 1 | Remove glove box (4) | AR68.10-P-1400LW | |
| 2 | Remove bolts (1) | ||
| 3 | Unclip perfume generator at retaining lug (arrow) and remove | Do not jam electrical wiring harness (3) between perfume generator and glove box. Otherwise, the electrical wiring harness (3) may be damaged. |
|
| 4 | Install in the reverse order |
