Remove/Install Fuel Metering Pump - AR83.70-P-5652LW
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 205
with code 228 (Auxiliary heater)
Model 213
with code 228 (Auxiliary heater)
Model 253 (except 253.992/993)
with code 228 (Auxiliary heater)
Shown on model 205.0

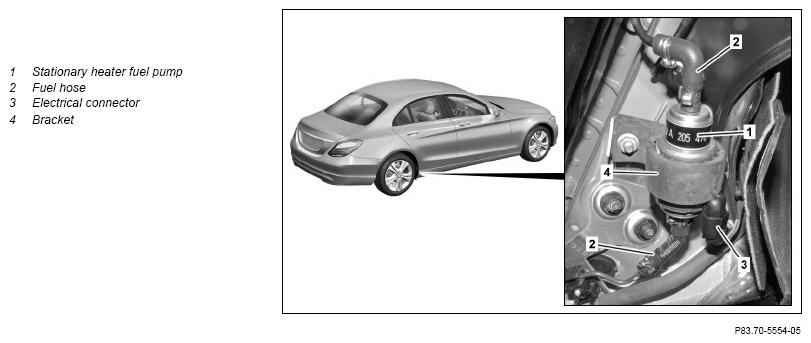

Fig 1: Stationary Heater Fuel Metering Pump Components Location - Model 253 (Except 253.992/993) With Code 228 (Shown On Model 205)
| Risk of explosion caused by fuel vapors igniting, risk of poisoning caused by inhaling combustible gases and risk of injury caused by burns during and after operation of heater unit | Do not operate stationary heater, auxiliary heater or engine with heater booster in closed rooms or when refueling. Allow heater unit to cool down after operation and wear protective gloves. | AS83.70-Z-0002-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. | AS47.00-Z-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Loosen right rear underfloor paneling until stationary heater fuel pump (1) is accessible | Model 205 with code 228 (Auxiliary heater) Model 253 with engine 177, 264, 274, 276, 642, 651 with code 228 (Auxiliary heater) |
AR61.30-P-1001LW |
| Model 213 with code 228 (Auxiliary heater) | AR61.30-P-1001LWE | ||
| 2 | Disconnect electrical connection (3) | ||
| 3 | Pinch off fuel hoses (2) | Fig 2 | |
| 4 | Remove fuel hoses (2) from stationary heater fuel pump (1) | Fig 3 | |
| 5 | Remove stationary heater fuel pump (1) from the bracket (4) | ||
| 6 | Install in the reverse order |
